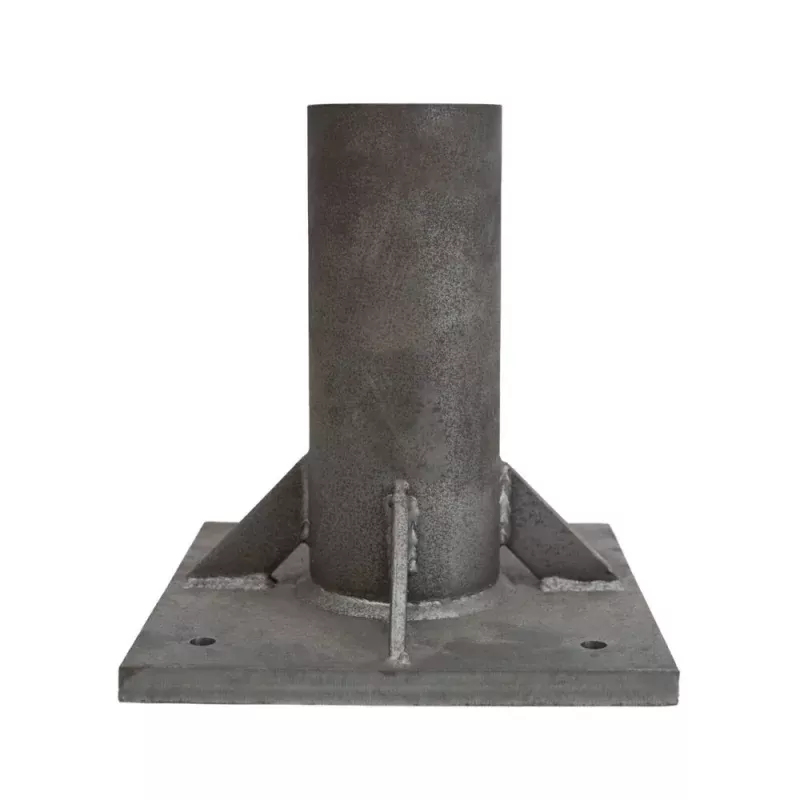

Weld-on SafeLink Post Baseplate

SafeLink Bases

The Weld-on SafeLink Post Baseplate is designed for use with the Safewaze SafeLink HLL System. Mounts securely to steel structures and is used with our 7.5 aluminum post.

Features:

• Use with FS-EX5501-5 aluminum posts
• For steel bolt installation:
  – (4) 1/2 grade 8 bolts with locking hardware
• For steel weld installation, must be installed by an AWS certified welder

Specifications:

Materials: 3/4″ (19.1 mm) Unplated steel Weight: 53 lbs. Height: 12.75″ Base Dimensions: 12″ x 12″ ANSI Weight Capacity: 130-310 lbs. (59- 141 kg) OSHA Weight Capacity: Up to 420 lbs. (191 kg) OSHA Standards: 1926.502, 1910.66
