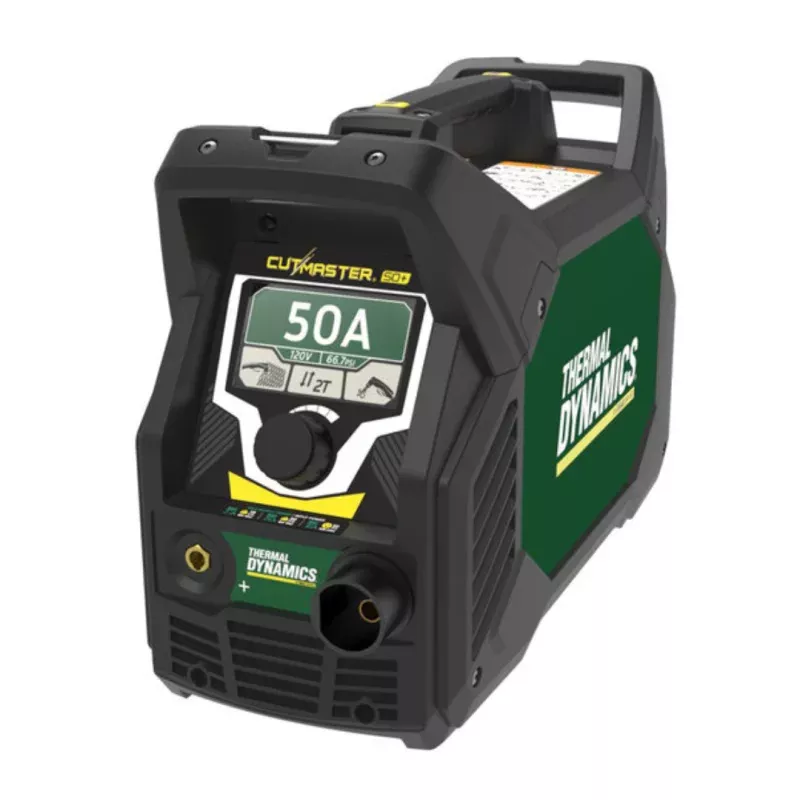

Thermal Dynamics Cutmaster 50+ Plasma Cutter

Thermal Dynamics TD CUTMASTER 50+ Plasma Cutting System

Cutmaster 50+ – Perfect Combination of Power and Portability

Description:The Cutmaster 50+ combines power and portability, delivering precision plasma cutting for industrial, automotive, and general fabrication needs. With an upgraded TFT LCD screen and enhanced features, this machine provides flexibility and control for cutting up to 25 mm (1 in.). The included SL60 1Torch and CNC compatibility make it an all-in-one solution for professionals.

Key Features:

• Portable and Durable DesignFeatures three handles and industrial all-weather housing for easy transport and resilience.
• Bright 10.9 cm (4.3 in.) TFT LCD DisplayGlove-friendly adjustment knob simplifies operation and enhances control.
• SL60 1Torch with Safety Features Includes a 2T/4T function, safety trigger lock, and a double-tap trigger for air conservation.
• Normal and Grate Cutting ModesAllows seamless switching between different cutting requirements.
• ATC Torch CompatibilityWorks with all ATC torch connections for added versatility.
• Consumables Package IncludedComes with general cutting and gouging consumables to cover most applications.
• Post-Cut Air PurgeExtends consumable life by automatically purging air after cutting.
• CNC FunctionalityFeatures a pre-installed 14-pin CPC receptacle with voltage divider for automation compatibility.
• Industry-Leading Warranty3-year warranty on power supply, 1-year warranty on torch and leads.

Technical Specifications

Product Name // Part Number TD Cutmaster 50+ // 1-5000-1 Input Voltage 120240 VAC +/-15% 50/60Hz, 1Ph Amperage Output 1550 A, continuously adjustable Recommended Generator Size 12+ kW Pierce Capacity* Up to 5/8 in. (16 mm) Cutting Capacity* 1 in. (25 mm) @ 8 inches/min (205 mm/min) Maximum Severance* 1 1/4 in. (32 mm) @ 4 inches/min (100 mm/min) Open Circuit Voltage (OCV) 310 V Rated Duty Cycle 120V: 40% @ 25 A / 120 V 100% @ 16 A
240V: 50% @ 50 A / 150 V 100% @ 30 A Circuit Breaker 20 A (120V)
70 A (240V) Amperage Draw 31 A (120V)
36 A (240V) Input Power Cable and Plug 3 m (10 ft), 10 AWG, with NEMA 6-50P Plug Weight 38.6 lbs (17.5 kg) Gas Requirements Compressed Air – Clean, dry, oil-free Operating Temperature Range -10 to +50 C (14 F to 122 F) Inlet Air Pressure Requirement 90125 psi (6.28.6 bar) Inlet Air Flow Requirement 300500 cfh (142235 l/min) Enclosure Class IP23S Dimensions (L x W x H) 18.3 x 7.9 x 12.4 in. (465 x 200 x 315 mm)

Full Product Data Sheet | Link To SL60 Torch Consumables

What’s Included

• Cutmaster 50+ Plasma System (30 Amp)
• SL60 Torch, 75 Deg Head, 16 ft. Lead
• Ground Lead w/ Quick Disconnect
• 1/4″NPT Fitting
• 230V-120V Power Adapter
