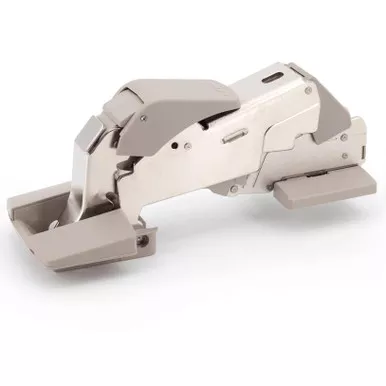

Sugatsune SPECIALTY OVERLAY HINGE W/SOFT-CLOSE (25MM OVERLAY) (NICKEL)
Our specialty soft-close overlay hinge (J160-D22-25T-NI), from our collection of European-style concealed cup hinges, offers 21-25 mm of overlay (with a bore distance of 8 mm).
It is a wide angle hinge with 160 degrees of opening range and features a built-in damper for premium soft-close performance.
This wide door hinge is recommended for door thicknesses of 18-36 mm.
This version comes in a stylish black nickel finish (See J160-D22-NI for regular nickel finish.) Together with its low profile, this makes for a clean, unobtrusive hinge that suits most decor types.
See Product Sheet PDF.
J160-D22-25T-BN Features & Specs
The J160 heavy-duty hinge is designed for premium durability and excellent performance, offering value both to the developer and the end-user:
Soft-Closing: The hinge damper delivers a soft close even if operated roughly.
Adjustable: The J160 offers 3-way adjustability to give you fine control over the door position:
Depth: +1.5 mm / −2.5 mm
Vertical: ±3 mm
Overlay (Horizontal): +0 mm / −4 mm
Long-Lasting: This hinge is rated for 50,000+ open/close cycles, making it ideal as a pantry door hinge or any application that requires frequent use.
All Parts Included: The J160 includes all necessary hardware including mounting plate, screw covers, and a red holding pin for hinge installation. (Note: So long as the red holding pin is in place, do not open or close the hinge .)
ITEM NO. J160-D22-25T-BN
WEIGHT 710 G
DIMENSIONS 129.7 × 102.1 × 86 MM
