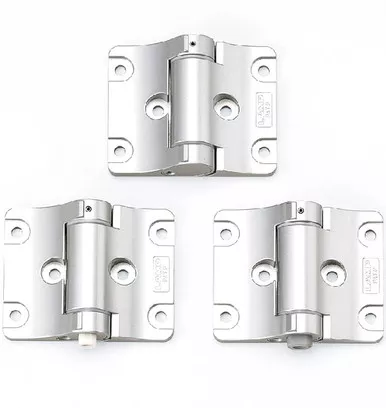

SUGATSUNE HG-CSH63 DETENT HINGE (WITH, WITHOUT DAMPER)
• Detent hinge with built-in damper as an
option.
• Detent will hold lid in open/closed position
without secondary support, and optional
damper will provide soft closing.
• Operating angle: 100Ëš
(Detent at both 0Ëš and 100Ëš)
• Detent holding force: 10.0 kgf·cm (8.8 lbs·in)
• Damper torque range: 10.2~25.5 kgf·cm
(9~22 lbs·in)/pc
