- Metal stand and chip tray for mini mill
- Single column design
- 16.1″ x 19.3″ x 35.3″ (410 mm x 490 mm x 896 mm)
- Cabinet for storage with locking door
- Fits the HiTorque and SIEG X2L/SX2L mini mills

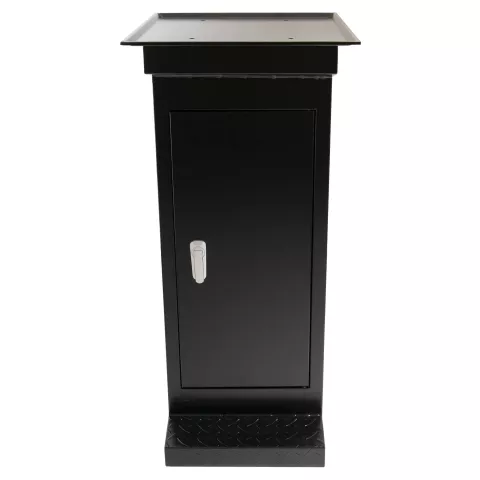

This single column black stand comes with a built in metal storage cabinet and is sized for mini mills. The cabinet has one shelf.
The tray dimensions are 16.1″ x 19.3″ x 0.95″(882 mm x 352 mm x 24 mm) and the unit stands 35″ (889 mm) high. The chip tray has been upgraded to provide years of service. The tray has predrilled holes for securing HiTorque and SIEG X2L/SX2L mini mills.
The cabinet base has bolting slots for securing the stand to a floor for additional stability and safety.
See the Compatibility tab for machines that work with this product.
| Height with Tray | 35.3″ (896 mm) |
| Width with Tray | 16.1″ (410 mm) |
| Width of Cabinet | 13.4″ (340 mm) |
| Depth with Tray | 19.3″ (490 mm) |
| Depth of Cabinet | 13.4″ (340 mm) |
| Depth of Cabinet Base | 16.5″ (420 mm) |
| Tray Usable Width (Flat Area) | 14.1″ (358 mm) |
| Tray Usable Depth (Flat Area) | 17.2″ (438 mm) |
| Cabinet Usable Width | 13.2″ (336 mm) |
| Cabinet Top Shelf Usable Depth | 10.6″ (270 mm) |
| Cabinet Top Shelf Usable Heigth | 17.0″ (432 mm) |
| Cabinet Bottom Shelf Usable Depth | 11.4″ (290 mm) |
| Cabinet Bottom Shelf Usable Height | 14.6″ (370 mm) |
| Bolt Down Slots Distance On Center | 6.7″ (170 mm) |
| Bolt Down Slots Width | 0.5″ (13 mm) |
| Bolt Down Slots Depth | 1.5″ (38 mm) |
