- Metal stand and chip tray for mini lathe
- Single column two door design
- 28.8″ x 13.9″ x 35.3″(732 mm x 352 mm x 896 mm)
- Cabinet for storage with locking door
- Fits SIEG C2, SC2, and HiTorque 7×12 mini lathes

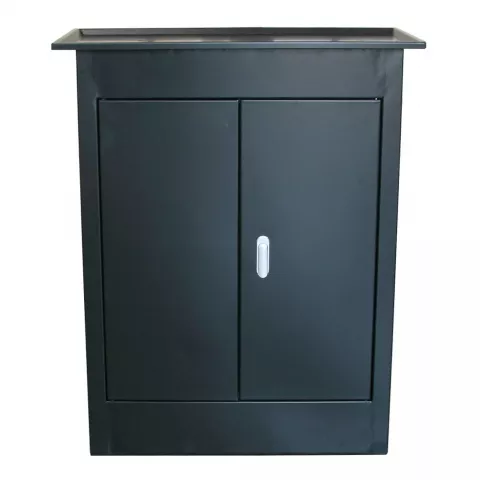

This single column two door design black stand comes with a built in cabinet and is suitable for all 7×12 SIEG C2C/SC2, and HiTorque mini lathes. The cabinet has one shelf.
The tray dimensions are 28.8″ x 13.9″ x 0.63″(732 mm x 352 mm x 16 mm). Predrilled holes in tray are sized for securing a compatible mini lathe.
This chip tray has been upgraded to be more robust than the trays that ship with most mini lathes.
The stand has bolting slots for securing the stand to a floor for additional stability and safety.
See the Compatibility tab for machines that work with this product.
| Height with Tray | 35.3″ (896 mm) |
| Width with Tray | 28.8″ (732 mm) |
| Width of Cabinet | 25.6″ (650 mm) |
| Depth with Tray | 13.9″ (352 mm) |
| Depth of Cabinet | 11.8″ (300 mm) |
| Tray Usable Width (Flat Area) | 26.8″ (680 mm) |
| Tray Usable Depth (Flat Area) | 11.8″ (300 mm) |
| Cabinet Usable Width | 25.5″ (648 mm) |
| Cabinet Top Shelf Usable Depth | 9.8″ (250 mm) |
| Cabinet Top Shelf Usable Heigth | 16.4″ (417 mm) |
| Cabinet Bottom Shelf Usable Depth | 9.1″ (230 mm) |
| Cabinet Bottom Shelf Usable Height | 15.0″ (380 mm) |
| Bolt Down Slots Distance On Center | 6.5″ (165 mm) |
| Bolt Down Slots Width | 0.5″ (13 mm) |
| Bolt Down Slots Depth | 1.4″ (35 mm) |
