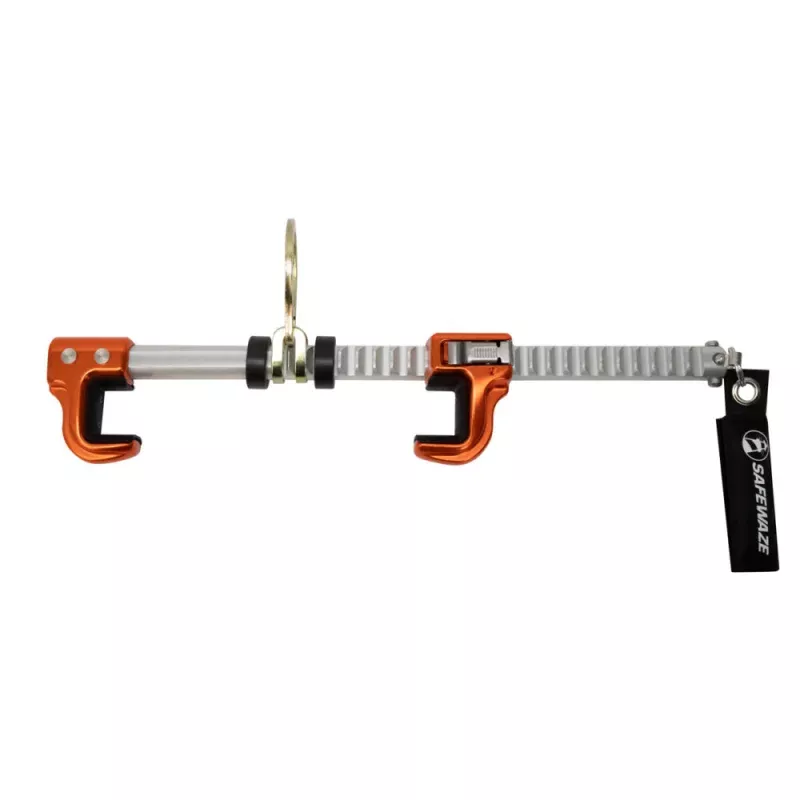

Sliding Beam Anchor 3.5-15

The Sliding Beam Anchor offers a pivot D-ring, replaceable jaw liners and smooth trailing hands-free mobility.

This lightweight compact design can be used on overhead or foot level tie-off with one-handed trigger action and single sided adjustment.

Features:

• 180 rotating connection point
• Nylon rollers for more effective slide
• Easy trailing for hands-free work
• Single sided adjustment
• Easy, one-handed trigger allows for quick lock & release
• Lightweight aluminum construction
• Overhead and foot level tie-off
• Protective label cover to ensure compliance
• Fits flange up to 1.25″

Materials: Aluminum support bar and clamps, nylon rollers and jaws, plated steel D-ring, polyester label cover Weight: 3.1 lbs. (1.4 kg) Overall Length: 20.5″ Beam Flange Width Range: 3.5″-15″ Beam Flange Thickness: Up to 1.25″ Minimum Breaking Strength: 5,000 lbs. ANSI Weight Capacity: 130-310 lbs. (59-141 kg) OSHA Weight Capacity: Up to 420 lbs. (191 kg) ANSI Standards: Z359.18-2017 Type A OSHA Standards: 1926.502, 1910.140, 1910.66
