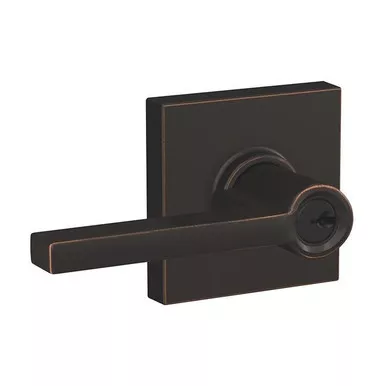

Schlage Keyed Entry Latitude Lever Door Lock with Collins Trim
Schlage Keyed Entry Levers
Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F10, F40, F51A, F80 functions)
Latch: 1”x 2 1/4”, 1/4” radius corner faceplate, 7/8” housing diameter, 1/2”
throw, circular drive-in included, universal latch
Strike: 1 5/8” x 2 1/4” radius corner, full lip, no box
Backset: Dual backset latches, fits either 2 3/8” or 2 3/4” backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1 3/8” – 1 3/4”
Keys: Two per lock, 5-pin, C section
Keyed Latch 16-086 – Dual Option (Round,Drive-in) STANDARD
Strike 10-027 -Round Corner Full Lip STANDARD
