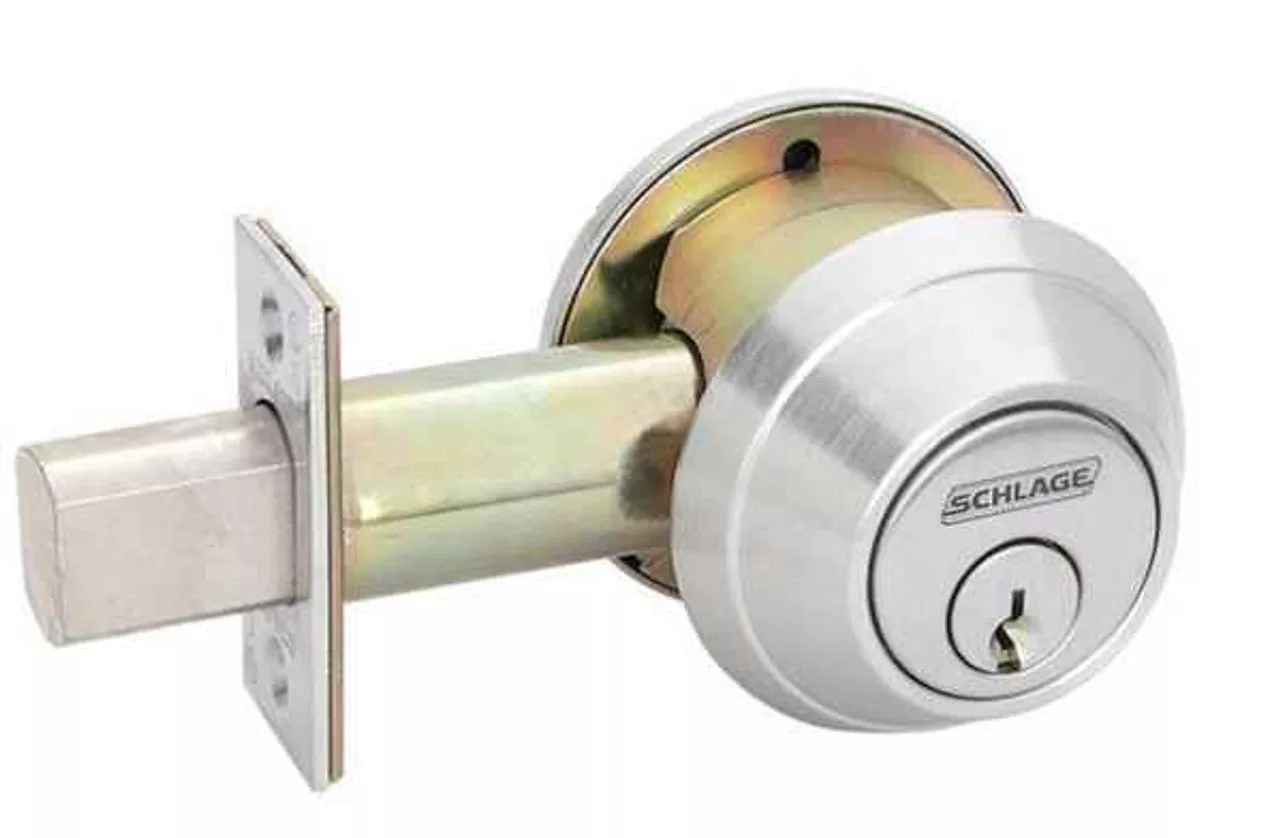

Schlage B661 – One Way Deadbolt
Schlage B Series deadbolts have long been the industry standard for tubular deadbolts. Built Schlage strong, B Series deadbolts are among the most secure and durable in the industry. The commercial Grade 1 deadbolts are also among the most beautiful, with a sleek, broadly angled trim ring in a shallow, 7/8″ depth offered in 11 finishes. A wide variety of functions and choice of cylinders including geographically exclusive Primus XP options, makes them suitable for nearly any deadlock application need.
FEATURES & BENEFITS
Strong and secure
- Solid sintered steel bolt with hardened steel anti-saw pin is thicker than most grade 1 deadbolt offerings
- Metal dustbox anchors deep to reinforce wood door frames with three 3″ screws to protect against kick-in attacks
- Free spinning, broadly angled cylinder collar resists wrenching and prying
- Removable security shield protects the bolt from ice-pick attack through the door
- Hardened steel ball-bearings protect mounting bolts from drill attack (Torx screw packs also available)
- Fixed backset strengthens lock against tampering (adjustable option available)
- UL 437 listed option resists drilling and physical attack on the cylinder (B800 only)
- UL 10C 3-hour fire-rated as auxiliary locks
Key System Security
- Open and restricted keyway options
- Primus XP program geographic exclusivity (B700 and B800)
- Factory master keying available
- Accepts all three cylinder formats: Conventional, FSIC, and SFIC
Functional and aesthetic options
- 6 functions include keyless, single-cylinder, and double-cylinder options
- 11 finish options
- Suites with nearly all Schlage and Von Duprin products
CERTIFICATIONS
- ANSI/BHMA A156.5 Grade 1 certified with Conventional cylinder (FSIC is Grade 2; SFIC is Grade 3)
- UL 10C listed, 3-hour fire rated as auxiliary locks for A label single doors, 4′ x 8′
- UL 10B listed for neutral pressure doors
- UL 437 listed (B800 Series only)
- ADA-compliant thumbturn design
- BAA (Buy American Act) compliant product
FUNCTIONS
Keyless
- B680 (E0191) Door bolt – thumbturn x no exterior trim
Keyed single cylinder
- B660/B760/B860 (E0151) – thumbturn x cylinder
- B661/B761/B861 (E0161) – blank rose x cylinder
- B663/B763/B863 (E0171) Classroom deadbolt – thumbturn retracts only x cylinder
- B664/B764/B864 (E0101) Cylinder lock – no inside trim x cylinder
Keyed double cylinder
- B662/B762/B862 (E0141) – cylinder x cylinder
PRODUCT SPECIFICATIONS
Deadbolt: 1″ housing diameter; 0.875″ x 0.62″ x 1″ throw; sintered steel with hardened steel anti-saw pin insert (drive-in options available)
Faceplate: 1-1/8″ x 2-1/4″ with square corners
Strike: 1-1/8″ x 2-3/4″ with square corners (ANSI, round corner and thimble strike options available)
Backset: 2-3/4″ fixed (adjustable and other fixed options available)
Door range: 1-5/8″-2″ Conventional and FSIC; 1-3/4″-2″ SFIC; 1-3/8″-2-1/2″ door bolt only
Reinforcement: Metal dust box reinforcer with three 3″ screws
Trim ring: 7/8″ solid brass or bronze
Cylinder: 6-pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Keys: Two nickel silver cut keys per lock
Suiting
Designed to create an attractive and cohesive building-wide look when paired with other Schlage, Von Duprin or LCN devices.
