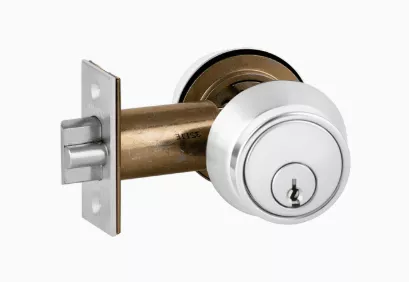

B252 Series Grade 2 Deadlatch
Ideal for use on gates, utility panels and pipe chases, B250 Series accepts conventional and FSIC cylinders and features a thumbturn “holdback.”
Overview
The B252 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. This makes it ideal for pool gates as a double cylinder and similar applications where relocking is essential to security. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch
Features & Benefits
Security
- Exceeds ANSI/BHMA Grade 2 operational and security standards
- 9/16″ throw deadlatch resists prying attacks and “shimming” of the latch
- Metal wood frame reinforcer uses 3″ screws to anchor deep into wood door frame to protect against kick-in attacks
- Free spinning, tapered cylinder collar with security insert resists wrenching and prying
- Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- UL 437 listed option resists drilling and physical attack on the cylinder
Aesthetics
- Seven available finishes
- Suites with nearly all Schlage and Von Duprin products
Functions
-
Double cylinder
- B252 Double cylinder deadlatch – cylinder x cylinder (ANSI E0112)
Built to Last
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Keyed functions
Single cylinder
- B250 Single cylinder deadlatch (night latch) – thumbturn x cylinder (ANSI E0122)
Specifications
Material
- Trim rings: solid brass 7/16″ and 1/8″ each reinforced with a hardened steel security inserts
- Cylinder: Solid brass in a solid zinc housing
- Dust box: wood frame reinforcer with polyproplylene dustbox and 3″ screws standard
Door Thickness
- Standard door thickness: 1-1/2″ to 1-3/4″ (38 mm to 44 mm) conventional cylinder; 1-1/2″ to 2-1/8″ (38 mm to 54 mm) FSIC cylinder
Deadbolt
- 1″ housing diameter; 9/16″ throw
- Backset: 2-3/8″ (60 mm) fixed backset standard; 2-3/4″ backset optional
- Faceplate: square corner 1-1⁄8″ x 2-1/4″ (29 mm x 57 mm) standard
- Strike: 1-1/8″ x 2-3/4″ T-strike with square corners and box standard; ANSI and round corner options available
- Strike lip length: 1-1⁄8″ (29 mm) standard; extended lip strikes up to 2″ optional
Certifications
ANSI/BHMA
- ANSI/BHMA A156.36-2020, Grade 2 auxiliary lock
UL
- UL 437 listed when using Primus high-security UL 437 cylinder
California Fire Code
- Meets Building Code requirements
BAA/TAA
- Meets BAA (Buy American Act)
