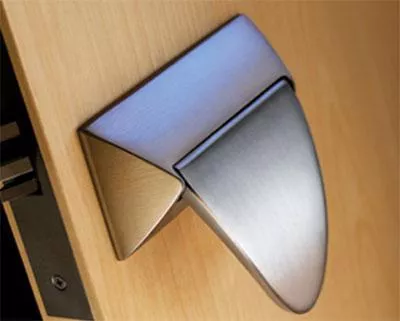

The Sargent 288215-ALP-US32D is a Grade 1 Heavy Duty Ligature Resistant Passage function Mortise Lock with ALP Push/Pull Trim and comes in US32D Satin Stainless Steel Finish. Sargent 8215-ALP-US32D has a 2-3/4″ backset, for doors 1-3/4″ to 1-7/8″ thickness, and can be mounted horizontal (up or down) and vertical (sideways) orientations in the field.
| Technical Specs | |
| Function | 15 Passage |
| ANSI Function | F01 – Passage |
| Lever/Knob Design | ALP – Push/Pull Trim |
| Cylinder Type | Non-Keyed |
| Handing | Field Reversible |
| Door Thickness | 1-3/4″ |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4″ |
| Lock Face Size | 8″ x 1-1/4″ |
| Bolt Projection | 3/4″ Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8″ |
| Std. Strike Width | 1-1/4″ |
| Screws | Combination |
| Product Type | Mortise Lock |
