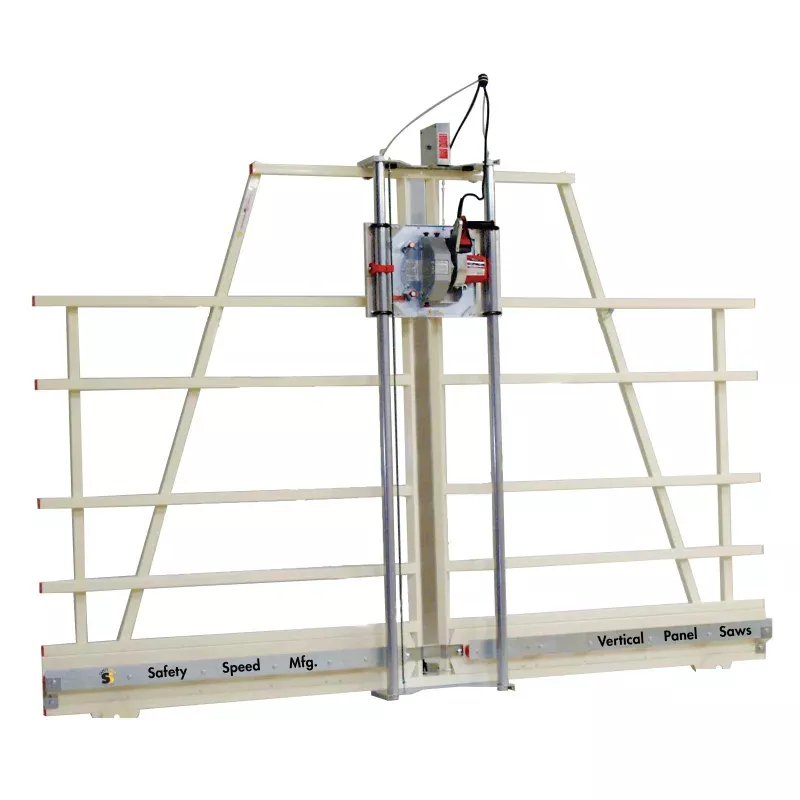

Safety Speed Cut Vertical Panel Saw w/ 74 Cutting Height H6

Safety Speed Manufacturing H6 Vertical Panel Saw w/ 74″ Cutting Height

The H6 Panel Saw provide a 74″ crosscut, ideal for cutting a 10′ X 6′ piece of material, up to 1.75″ thick while
only occupying 30 square feet of floor space. A motor made by Milwaukee Tool is currently used on the H6
vertical saw.

Features:

• 3-1/4 Hp, 15 amp industrial, Milwaukee Tool motor.
• Zinc plated 1-3/4″ steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Specifications:

• Weight359 lbs
• Dimensions120 x 11 x 95in
• Max. Crosscut74″/1850mm
• Max. Rip CutUnlimited
• Cut Depth1-3/4″/45mm
• Cut Accuracy1/32″/.8mm
• Frame Length120″/3050mm
• Saw Blade Diameter8″/210mm
• Saw Blade Bore Size5/8″
• Daily Usage1-3 Hours
• Rollers14
• Motor volt and amperage15 amp, 120V, 7.5 amps, 220V
• Motor ManufacturerMilwaukee Tool
• Country of OriginUSA
