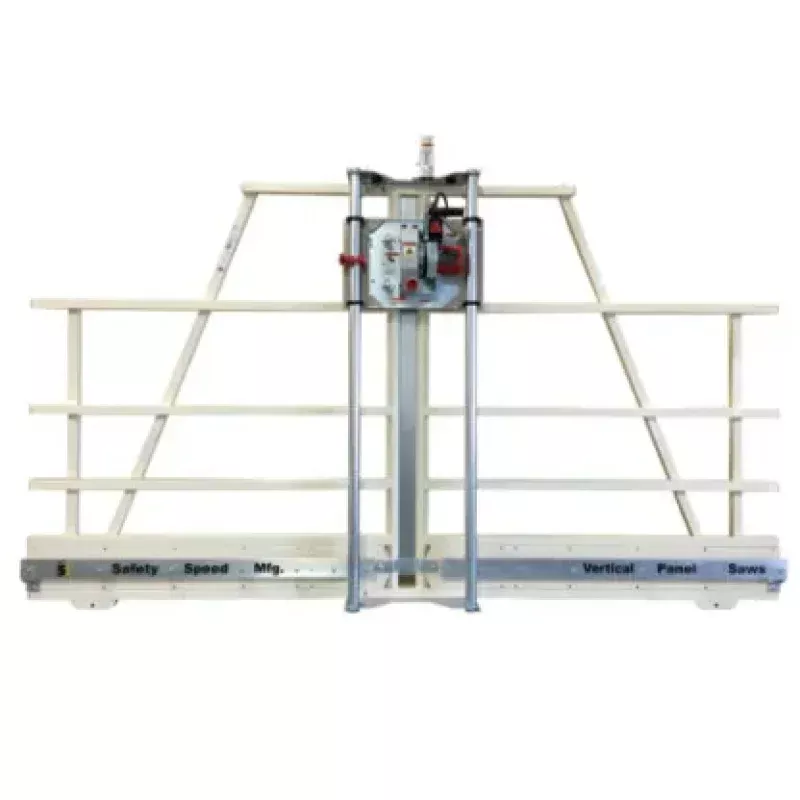

Safety Speed Manufacturing H4 Vertical Panel Saw w/ 50″ Cutting Height
Featuring a 10′ frame, and 50″ maximum crosscut with an unlimited rip cut, this panel saw is a preferred
solution
for cutting 4′ X 8′ sheets of plywood. The H4 panel saw cuts within 1/32″ on a wide variety of panel materials
up to 1-3/4″ thick.
The H4 offers full-sized vertical panel saw productivity in economical machines. H-Series saws are used in all
kinds of panel processing applications.
Features:
- 3-1/4 Hp, 15 amp industrial, Milwaukee Tool motor.
- Zinc plated 1-3/4″ steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
Specifications:
- Weight244 lbs
- Dimensions120 x 11 x 70in
- Max. Crosscut50″/1270mm
- Max. Rip CutUnlimited
- Cut Depth1-3/4″/45mm
- Cut Accuracy1/32″/.8mm
- Frame Length120″/3050mm
- Saw Blade Diameter8″/210mm
- Saw Blade Bore Size5/8″
- Daily Usage1-3 Hours
- Rollers14
- Motor volt and amperage15 amp, 120V, 7.5 amps, 220V
- Motor ManufacturerMilwaukee Tool
- Country of OriginUSA
