Specifically designed to work with the Rain Bird LX-IVM Controller

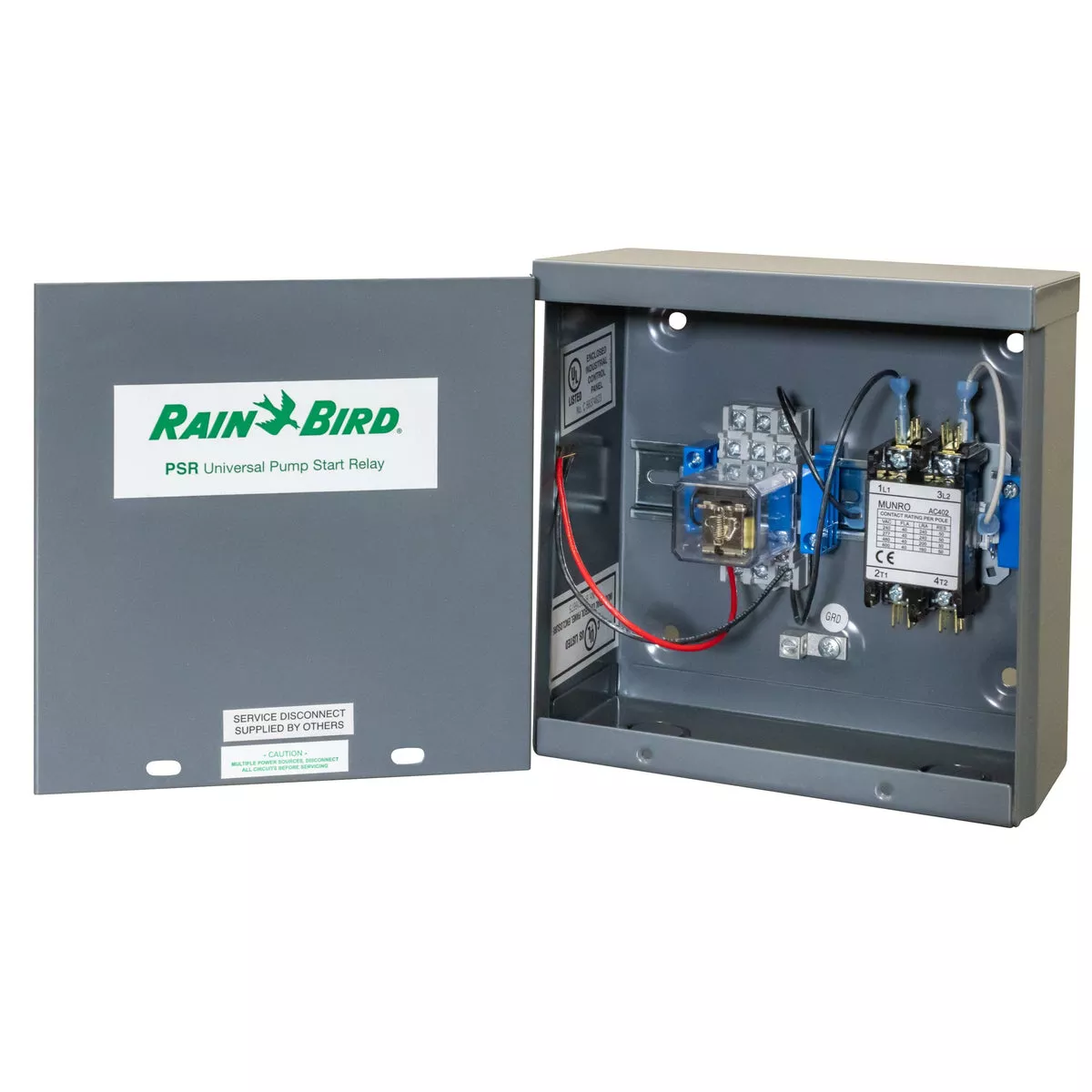

The Rain Bird line of pump start relays work with a lawn controller’s start/stop command to facilitate the electrical path from the breaker box to the pump motor. Rain Bird PSR110/220-IVM models are specifically designed to work with the Rain Bird LX-IVM Controller through the use of a 9 volt latching relay. This provides “pilot duty” operation for all types of electrically driven pump equipment.
Features
- 40 AMP UL listed relay
- Quick connect terminals with wire nuts
- Grounding provision
- Compatible with ESP-LX IVM & ESP-LX IVM PRO Controllers
- Compatible with 110 or 220 VAC 3/4 hp thru 5 hp* single phase pumps
- Grey “baked-on” powder coating, for long life in difficult environments
- Housed in compact NEMA 3R weather tight enclosures
- UL Listed components and backed by a limited two-year warranty
Enclosure
- UL Listed
- Nema 3R
- Powder-coated steel – Grey
Electrical Information
- Coil Voltage: 24v
- Electrical Rating: 120v – 24 FLA, 240v – 28 FLA
- Largest Motor: 120v – 2 hp, 240v – 5 hp
- Short Circuit Rating: 120v – 5kA, 240v – 5kA
- Control voltage required: IVM-OUT Device will supply the required 9 volt DC current
- Hertz: Sixty (60)
- Inrush/run: 950mA/360mA
Dimensions
- Width: 6”
- Height: 6”
- Depth: 4”
Specs
Coil Voltage: 24V
Electrical Rating: 120v – 24 FLA, 240v – 28 FLA
Largest Motor: 120v – 2 hp, 240v – 5 hp
Short Circuit Rating: 120v – 5kA, 240v – 5kA
Control voltage required: IVM-OUT Device will supply the required 9 volt DC current
Hertz: Sixty (60)
Inrush/run: 950mA/360mA
