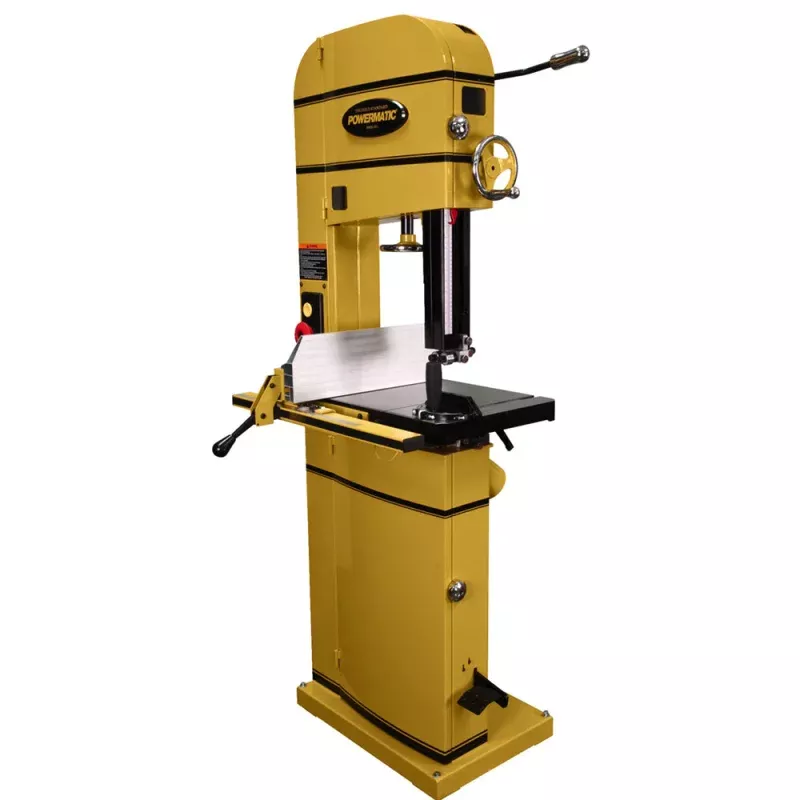

The Powermatic PM1500 packs many of the features traditionally only found on larger band saws and brings them to a new, category-redefining, 14″ size. As with every product Powermatic builds, the PM1500 pushes the limits of design, innovation, and durability.
[TABS]
Features
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned or released
- Fence features positive locking cam with pressure adjustment
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
- Oversized side plate can be used in the horizontal or vertical position
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
Specs
Blade Length: 153″
Blade Speed: 3,100 SFPM
Cutting Capacity Height: 14″
Min. Dust Collection Required: 600 CFM
Dust Port Outside Diameter: 4″
Minimum Saw Blade Width: 1/8″
Motor Phase: 1
Motor Power: 3hp
Motor Voltage: 230V
Prewired Voltage: 230V
Recommended Circuit Size: 20 A
Style (Type): Floor
Table Height from Floor: 40″
Table Size (L x W): 21-1/2″ x 16″
Table T-Slot: 3/4″
Table Tilt: 45 Right / 10 Left
