- Fits large-table mini mills
- Clutch disengages power feed when not in use
- Adjustable limit switches restrict travel
- 120-240V 50-60Hz

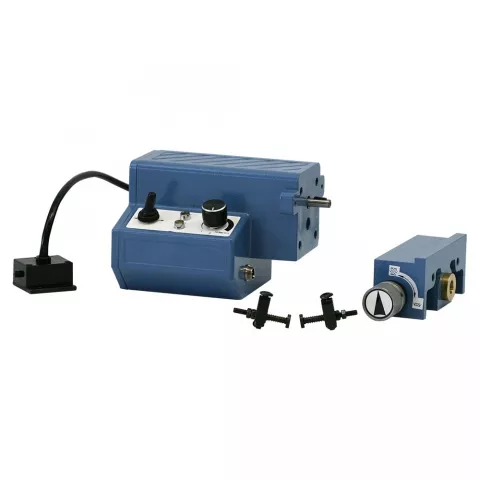

Power table feed for the LMS HiTorque mills and other large-table mini mills such as the LMS SIEG X2D mill (4962).
This power table feed mounts on the left end of the mini mill’s table and drives the X-axis feed screw. It is variable speed (0 to 20 inches per minute).
The power feed takes about 20 minutes to install. It is a bolt-on accessory for the HiTorque Mini Mill and requires no modifications to the machine. The power feed adds 8 1/4″ inches to the left end of the table.
This mini mill power feed works on 120-240V 50-60Hz power. It has a computer-style (IEC 60320 C3/C4) power cord that unplugs from the power supply unit. This makes it easy to adapt for other countries. The furnished power cord has a North American (NEMA 5-15P) wall plug.
This mini mill power feed also fits the Grizzly G0727 horizontal/vertical mill. SIEG U1
See the Compatibility tab for machines and other products that work with this product.
