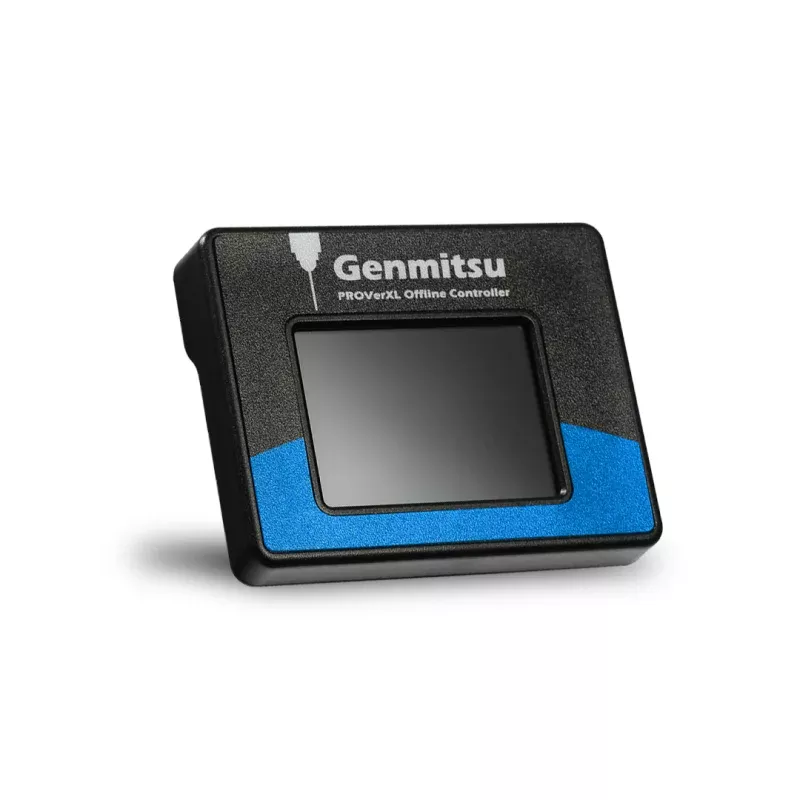

Offline Control
With the Genmitsu Offline Controller module you can free yourself from having to dedicate a laptop or desktop running your PROVerXL 4030 and 4×4. Easily Jog your XYZ Axis making it easy to set up jobs on the fly with easy access to toggling your spindle ON/OFF.
FUNCTIONS
- Control X, Y, Z-axis moving
- Control spindle/laser on/off Zero X, Y and Z axis
- Adjust the PWM
- Reset and resume the machine, unlock emergency stop switch
Touchscreen LCD Display
Comes with a 2.4″ Touchscreen LCD Display that’s easy to read and use.
Easy File Access and Transferring
Your projects can be directly saved and recognized by copying them to the included SD card making it easy to store your finished projects for future use.
Caution
Please note that Computer Control and Offline Control cant be used at the same time. Please disconnect the computer when using the controller.
Specifications
Software: GRBL controller, Universal G-code Sender
Input voltage: 12-36V
Spindle drive chip: MOSFET (recommendation 12~36V, current: within 10A)
Spindle PWM speed: Support
Support stepper motor: 12V, a maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
What’s included
1 x Offline Controller
1 x 8P Cable (20.4″ / 52cm)
1 x SD Card Adapter
1 x TF Card(1G)
How to use it? (Read)
