- 30% more travel in both directions
- 50% more table area
- Bolt pattern for solid column attachment (P/N 4307)

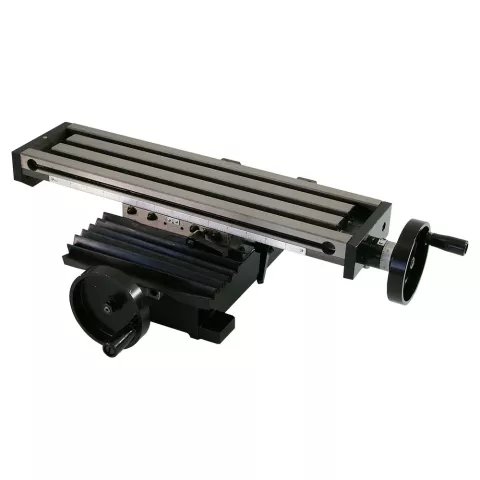

This is a complete X-Y table assembly for a mini mill.
The table is 120 mm (4.73″) by 460 mm (18.11″). It has three 12 mm T-slots.
The X-axis travel is 300 mm (11.8″) and the Y-axis travel is 130 mm (5.1″).
The dials are graduated in 0.001″ and one turn of the hand wheels moves the table 0.050″.
The X-Y table is made of cast iron and steel. There are adjustable gibs on both axes.
The column mounting bolt pattern consists of 4 M8 threaded holes spaced 135 mm x 50 mm.
