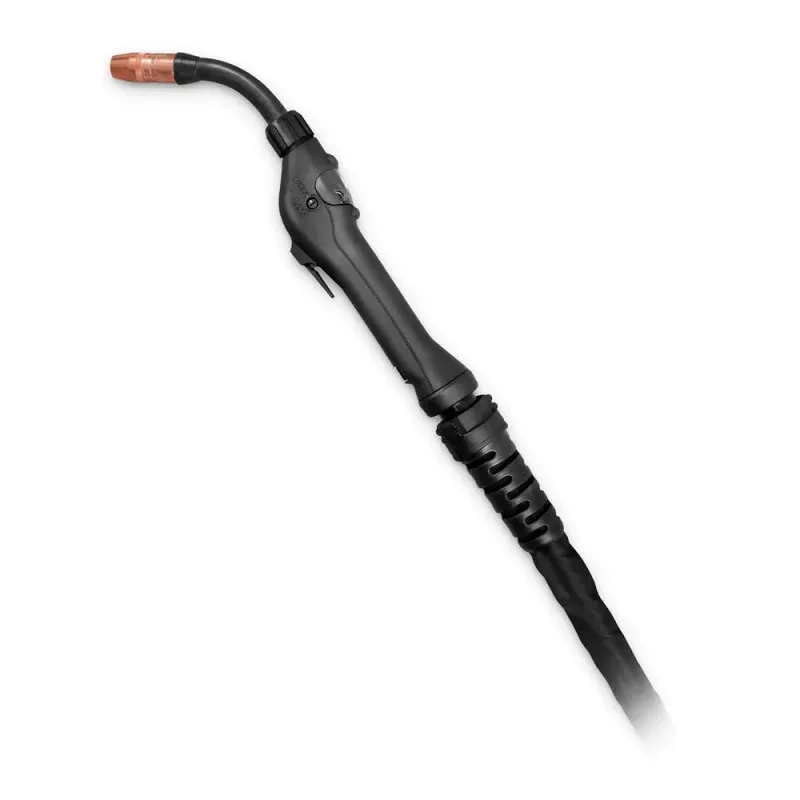

Miller XR-A Aluma-Pro Plus Push Pull Gun
New lighter XR-Aluma-Pro guns reduce fatigue, improve output and are rugged to withstand industrial environments.
Features
-
Aluminum-Specific Tension Settings: Optimized to provide smooth wire feeding performance specifically for 4000 or 5000 series aluminum wires.
-
Ergonomic Balanced Design: Reduces operator fatigue, improves access to tight joints, and allows better control over gun angles and travel speeds.
-
Premium Wire Feed Control: Features a 3-3/4 turn potentiometer for precise wire speed adjustments on the fly, with a recessed knob easy to operate while wearing heavy welding gloves.
-
Isolated Knurled Drive Roll: Toolless drive roll system feeds .030 to 3/64-inch wire straight out of the box.
-
Easy Maintenance & Serviceability: Designed with a full-length hook-and-loop cable cover closure and quick-connectors between control cables and electrical components.
-
Replaceable Feed Cable Liner: Minimizes service costs by allowing you to swap out just the liner rather than replacing the entire cable bundle.
H: 5 in. (127 mm)
W: 2.5 in. (64 mm)
D: 17 in. (432 mm)
Drive Rolls, Idler Rolls, & Inlet Guides
- Drive Rolls (All wire sizes): Part No. 227434
- Idler Rolls:
-
For .030, .035, .040, and 3/64 in. wires: Part No. 227439
-
For 1/16 in. wires: Part No. 230710
-
- Inlet Guides:
- For .030, .035, .040, and 3/64 in. wires: Part No. 227408
- For 1/16 in. wires: Part No. 230711
Cable & Head Tube Liners
- Main Cable Liner (15 ft. length): Part No. 229887
- Short Head Tube Liners (4 in.):
- For .030, .035, and .040 in. wires: Part No. 227161
- For 3/64 in. and 1/16 in. wires: Part No. 230239
- Long Head Tube Liners (6 in.):
- For .030, .035, and .040 in. wires: Part No. 229674
- For 3/64 in. and 1/16 in. wires: Part No. 229431
Contact Tips (Aluminum-Specific T-Series)
- .035 in. (0.9 mm) wire: Part No. T-035AL
- .047 in. (1.2 mm) wire: Part No. T-047AL
- 1/16 in. (1.6 mm) wire: Part No. T-062AL
Nozzle Insulators & Diffusers
- Large Configuration Insulator: Part No. 10012
- Large Configuration Diffuser: Part No. D-1AP
- Small Configuration Insulator: Part No. 4323R
- Small Configuration Diffuser: Part No. DS-1AP
Large Nozzles
- Part No. N-3414C (Copper, 3/4 in. I.D., 1/4 in. tip recess)
- Part No. N-3418B (Brass, 3/4 in. I.D., 1/8 in. tip recess)
- Part No. N-3414B (Brass, 3/4 in. I.D., 1/4 in. tip recess)
- Part No. N-5814C (Copper, 5/8 in. I.D., 1/4 in. tip recess)
- Part No. N-5818B (Brass, 5/8 in. I.D., 1/8 in. tip recess)
- Part No. N-5814B (Brass, 5/8 in. I.D., 1/4 in. tip recess)
Small Nozzles
- Part No. NS-5818B (Brass, 5/8 in. I.D., 1/8 in. tip recess)
- Part No. NS-1218B (Brass, 1/2 in. I.D., 1/8 in. tip recess)
- Part No. NS-1200B (Brass, 1/2 in. I.D., flush tip)
- Part No. NST-3818B (Brass, 3/8 in. I.D., 1/8 in. tip recess)
