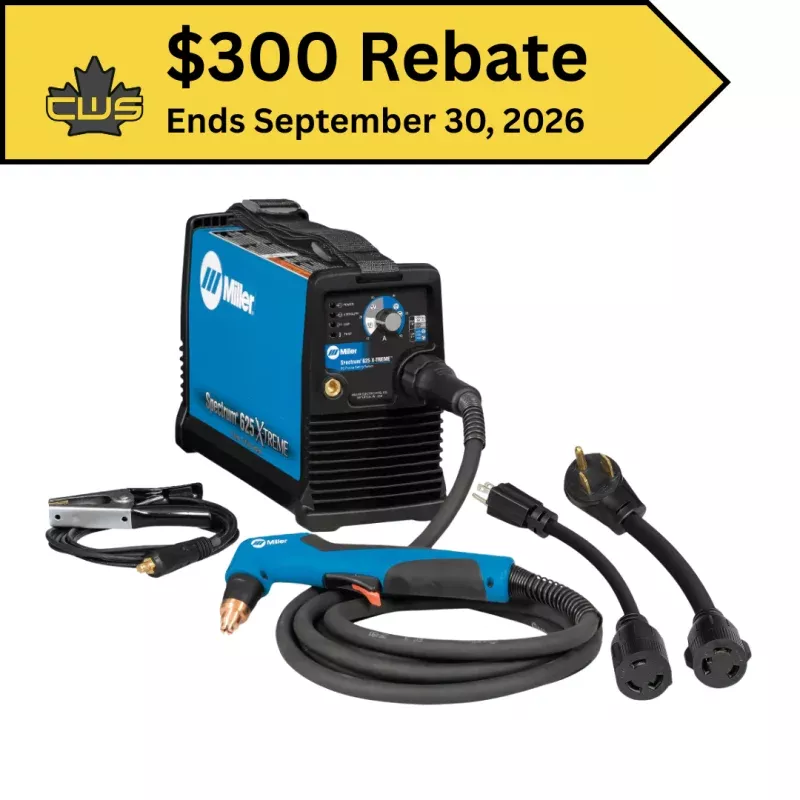

Miller Spectrum 625 X-TREME Plasma Cutter
Powerful 40 amps cuts up to 5/8 inch mild steel and weighs only 21 lbs. X-CASE provides ultimate protection during transport and storage.
Features
- Rated Cutting Capacity -The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
XT40 Torch
Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy. Now comes with the new ultra flexible Quick Connect work lead with smaller heavy duty clamp. - Auto-Line and MVP (multi-voltage plug) Adapters -Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Millers multi-voltage plug (MVP) Adapters allow connection to 120 or 240 V receptacles without toolschoose the adapter that fits the receptacle and connect it to the power cord.
- Portability -Portable in the shop or at the job siteat 21 pounds the shoulder strap allows the end user to easily move from location to location.
- Protective X-CASE -Miller’s X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plug Adapters, consumable box, as well as gloves, eye protection, etc.
- Generator Compatible -The Spectrum 625 will be able to operate and provide full output when powered by generators with 8000 Watt (8K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
- Auto-Refire Technology -Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metalall automatically! No need for manual re-triggering which reduces user hand fatigue.
- Fan-On-Demand -Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
What’s Included
- Spectrum 625 X-TREME
- XT40 hand-held torch with 12-ft. (3.7 m) cable. Torches include a complete set of 40 A consumables
- Heavy-duty work clamp and flexible cable with quick connect
- 12-ft. (3.7 m) power cord with 240 V L6-30P twist lock plug for MVP adapters
- MVP adapters with 240 V, 50A (6-50P) plug and 120 V, 15 A (5-15P) plug
- X-CASE provides protection during transport and storage
- Shoulder Strap
- Consumables box with 2 electrodes, 2 tips (40 A), 1 tip (30 A), drag shield (30 A), deflector, and air fitting
Options
- 12ft Lead – 907579
- 20ft Lead – 907579001
Full Product Data Sheet
