Mastercut SA-12 1/8 Cylindrical Shape Carbide Burr (1 Burr)

Mastercut SA-12 1/8″ Cylindrical Shape Carbide Burr (1 Burr)

BURR SIZE Cut Diameter/OD 1/8″ Cut Length/LOC 5/8″ Shank Diameter/SHK 1/4″ Length/OAL 2″ CUT TYPE

Singlecut

• General purpose tool for cast iron, copper, brass and steels
• Fairly aggressive cutting action, with good material removal rates
• This tool leaves a nice finish on most all materials, but the bite can be demanding on operators

Doublecut

• For general purpose use including cast iron, copper, brass and steels
• The Doublecut utilizes a cross flute of exactly half the number of standard flutes in a opposing helix
• Sliver size is greatly reduced, as is the operator fatigue from the balanced cutting forces
• Lower RPMs may be utilized with little negative impact on performance
• The decreased load equates to operator’s often feeding this tool more aggressively

Alumacut

• Best for all non-ferrous, non-metallic workpieces like aluminum, zinc, plastic, wood, etc.
• An extremely aggressive cutting action, with little or no chance of plugging these flutes up

Diamondcut

• Is a finer cut of opposing helixes
• Operating control is very good because the biting action is limited as is the silver size produced from it
• This version tends to be preferred in shops where titanium and other difficult materials (superalloys) are being deburred
• With the teeth being smaller and slightly more fragile as a result, tool life is not usually a matter of import
• Fiberglass tends to cut nicely with Diamondcut

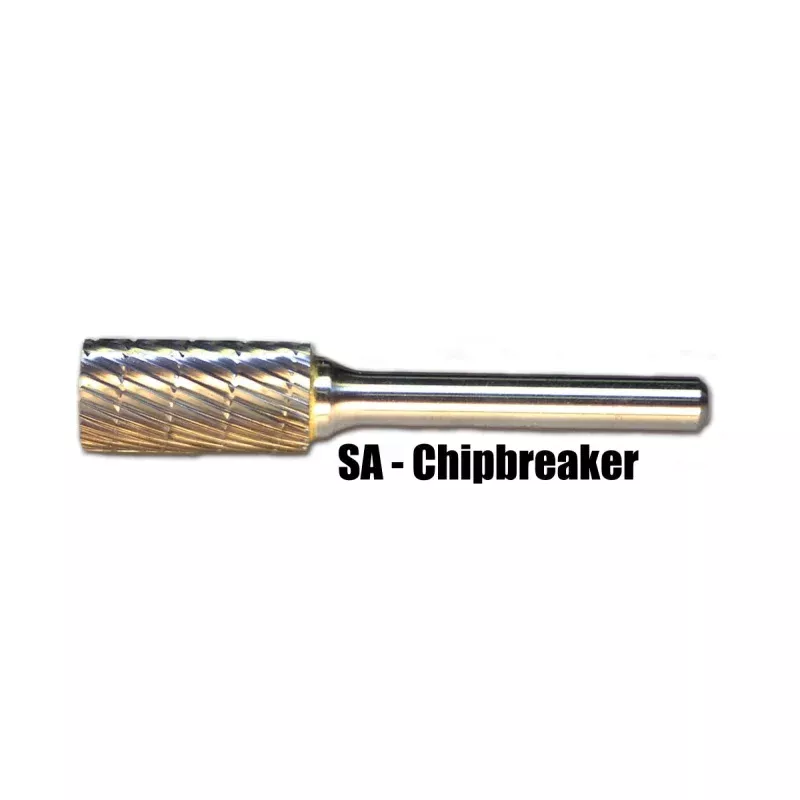

Chipbreaker

• Another version of the Doublecut, this is a slightly less aggressive tool whose main purpose is to simply interupt the cut
• One single, opposing helix is ground in a spiral around the tool, typically
• Silver size goes down, surface finish goes down marginally, hand control goes up, marginally

(Call for high usage quote – 641-201-1352)
