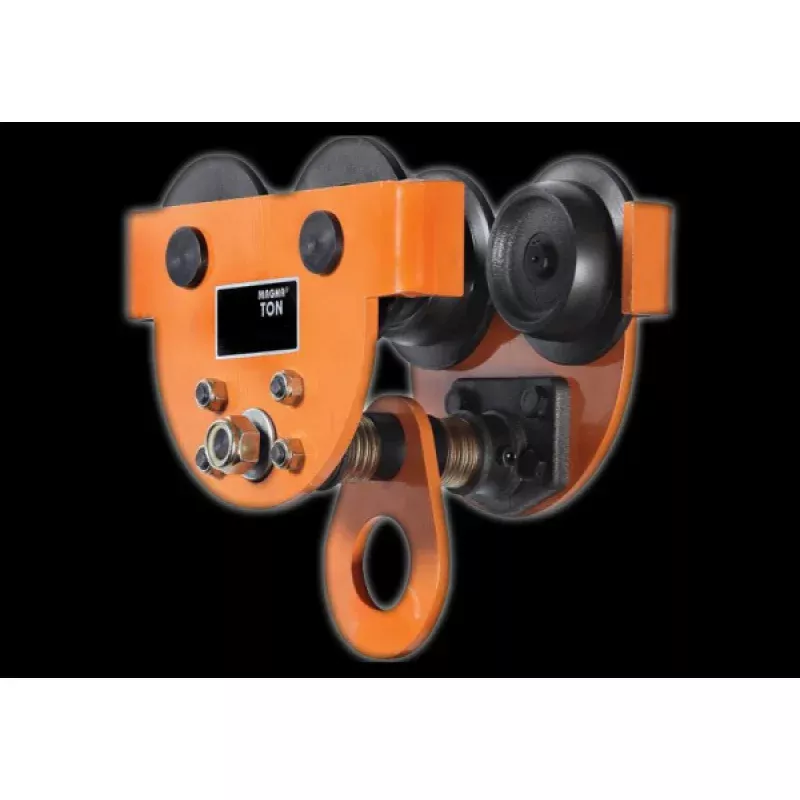

MAGNA 3 Ton Plain Trolley PTR300
Designed for demanding industrial tasks, the MAGNA PTR300 Plain Trolley offers a substantial 3 Ton (6,600 lbs) capacity. It provides a sturdy, mobile anchor for chain hoists, allowing for efficient horizontal transport of heavy equipment and materials across overhead beams.
The PTR300 features high-quality cast iron wheels with hardened treads and sealed ball bearings, ensuring low rolling resistance and a long service life. Its adjustable construction accommodates a wide range of beam sizes, while the integrated anti-drop lugs provide critical safety redundancy. This trolley is factory tested to 150% of its rated load to guarantee performance and safety.
Features & Benefits
- Heavy Lifting: Supports up to 6,600 lbs for serious material handling jobs.
- Effortless Travel: Sealed ball bearings reduce friction for easy pushing.
- Flexible Installation: Fits beam flanges from 4.0 to 8.0 inches wide.
- Operational Safety: Includes anti-drop lugs and bumpers as standard features.
- Rugged Durability: All-steel construction meets ANSI/ASME strict standards.
Specifications
- Model Number: PTR300
- Working Load Limit (WLL): 3 Ton (6,600 lbs)
- Trolley Type: Plain (Push)
- Fits Flange Width: 4.0 – 8.0 in.
- Minimum Radius Curve: 83 in.
- Headroom: 7.3 in.
- Net Weight: 68 lbs
