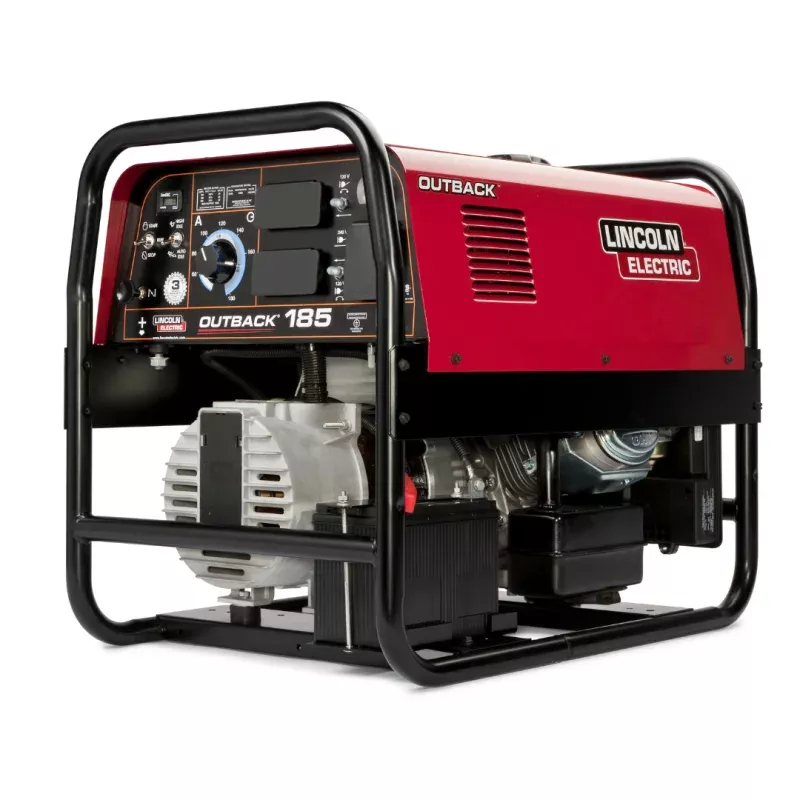

Lincoln Electric Outback 185 Engine Driven Welder – K2706-2

Lincoln Electric Outback 185 Engine Driven Welder – K2706-2

The compact Outback 185 is easy to start with all engine controls on the front of the machine, and its easy to use for welding. Use the AC generator power for a variety of applications described below with the large 6.8 gallon (25.7 liter) fuel tank

Features

• All Engine Controls on Front Control Panel
• 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
• 6.8 Gallon (25.7 Liter) Fuel Tank
• Weld with up to 5/32 in. (4 mm) Stick Electrode
• Up to 185 amps of DC output for many applications
• 5,700 Watts Peak AC Generator Power (5,200 Watts Continuous).

Outback 185 Technical Specifications

Duty Cycle: 100 Amps, 25 Volts @ 100% /150 Amps, 25 Volts @ 20% Welding Output: 185 Amp DC, Max. 80V OCV Generator Output: 5700W Peak, 5200W Continuous 60Hz AC Power 240VReceptacle: 21.6A 120V Receptacles: Two120V Receptacles, 40A Total

Kohler Engine:
CH440 Gasoline

14 HP @ 3600 RPM, 429 cc
Electric Start
Fuel: 6.8 Gals (25.7 liters) Oil: 1.2 Qts (1.1 liters)

Download Tech Sheet
