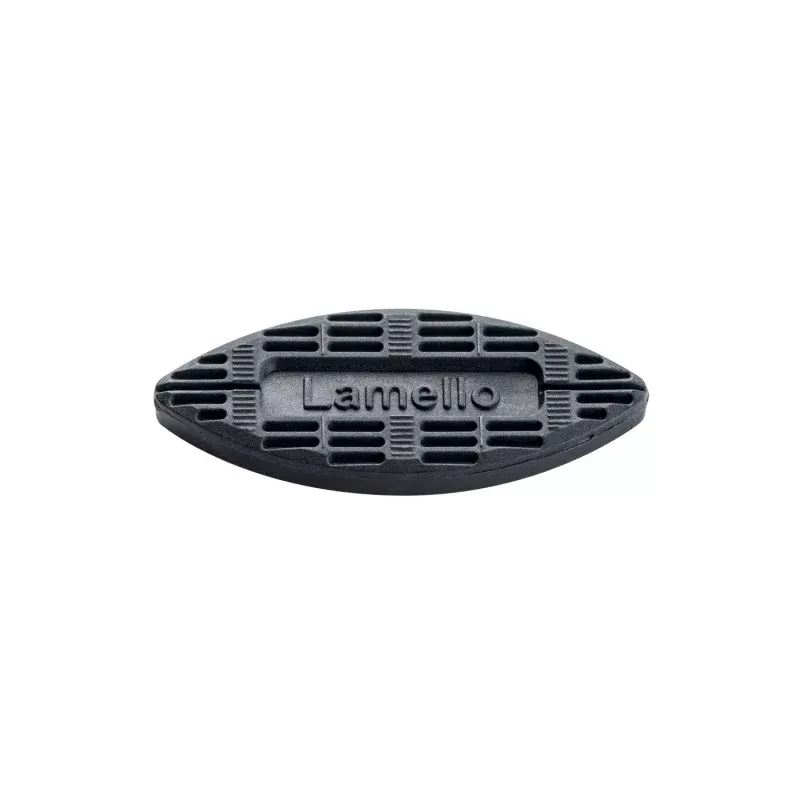

Lamello Bisco P-14 P-System Alignment Elements, 1,000 Count 145303
The Lamello Bisco P-14 is a plastic alignment element that serves as a versatile and cost-effective component within the P-System workflow. Designed to fit perfectly into the same 7mm P-System groove as the Clamex P-14 and Tenso P-14 connectors, it eliminates the need for cutter changes. Its primary function is to ensure perfect flush alignment of panels, especially in long joints where a structural connector may not be needed at every point. The Bisco P-14 can also be used for dry-fitting assemblies before final glue-up, or in conjunction with PVA glue to create a strong, fixed connection, increasing shear strength and stiffening the joint. This bulk 1,000-count box offers maximum value for high-volume production facilities.
Features & Benefits
- Perfect Alignment: Ensures flush alignment of grooves and panels, ideal for tabletops, countertops, and separation walls.
- Streamlined Workflow: Fits the same P-System groove as P-14 connectors, eliminating the need to change cutters or machine settings.
- Cost-Effective Solution: Use in combination with Clamex or Tenso connectors as a less expensive way to maintain alignment and add strength over long joints.
- Self-Clamping Fit: A textured surface structure allows the Bisco P to hold itself securely in the groove during assembly.
- Versatile Use: Can be used for dry-fitting, as a gluing aid with PVA glue for a permanent bond, or to increase the shear strength of a joint.
Applications
- Maintaining flush alignment on long panel joints like tabletops and kitchen worktops.
- Used alternately with Clamex P-14 or Tenso P-14 connectors to provide alignment and stiffening.
- Dry-fitting assemblies to test joints before final gluing.
- Creating permanent glued joints as a modern alternative to traditional biscuits.
Specifications
- Size: 65 x 27 x 7 mm
- Material: Plastic
- Installation Tolerance: Longitudinal2 mm
- Minimum Material Thickness: 16 mm
- Quantity: 1,000 pieces
