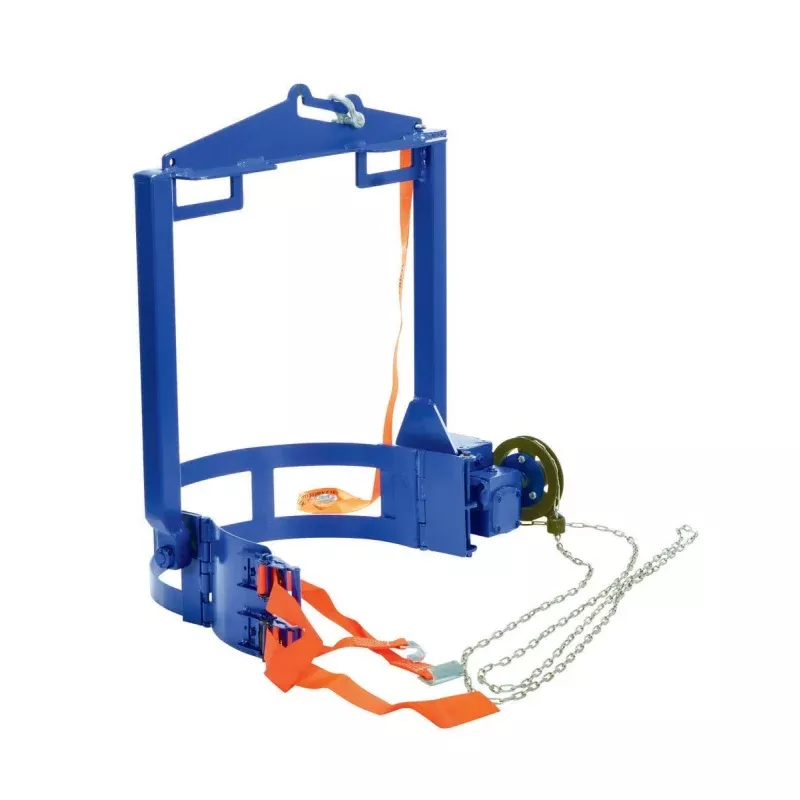

Hoist Mounted Drum Carrier/Rotators

Rotate and position a fully loaded 55 gallon steel drum with ease. Use with an overhead hoist or a fork truck.

Fork pockets measure 5-1/2″W x 1-15/16″H usable. Features a chain crank that allows the operator to rotate 360 degrees drums that are out of reach. Drums are held in place with a drum locking system. Meets OSHA 1910.179 requirements. Model DCT-2000 features gear box operation. Models ending with suffix “4WFP” have bolt on fork pockets for 4 way entry, usable 5″W x 1-9/16″H and 5-1/2″W x 1-15/16″H.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Hoist Mounted Drum Carrier/Rotator Model Image PDF’s Drum
Style Capacity
(lbs) Rotation
Method Wt.
(lbs) DCT-75 55 gallon steel 800 15′ chain 145 DCT-85 55 gallon steel 1,500 15′ chain 145 DCT-2000 55 gallon steel 2,000 15′ chain 169 DCT-75-4WFP 55 gallon steel 800 15′ chain 159 DCT-85-4WFP 55 gallon steel 1,500 15′ chain 159

Drum must be full to rotate at rated capacity

KEY:= Approval Drawing —= Warranty —= Testing Certificate
