- Main handwheel bench lathe
- Fits SIEG SC4 and HiTorque bench lathes
- 92 mm outside diameter
- Fits 20 mm shaft (no key)
- Bore is 36 mm, handle threading is M8

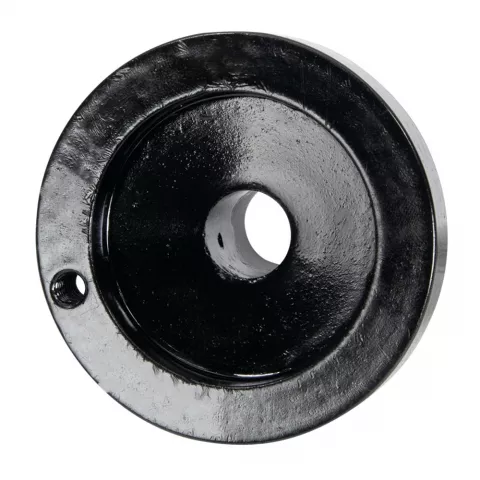

Carriage main handwheel for HiTorque Bench Lathes and SIEG SC4 bench lathes. See Used On tab for reference to machines using this handwheel and the drawing number. The hand wheel is 92 mm in diameter. It mounts on a 20 mm shaft with no key. The length through the bore is 36 mm. There is an M8 threaded hole for a handle.
See Used On tab for reference to machines using this handwheel and the drawing number.
