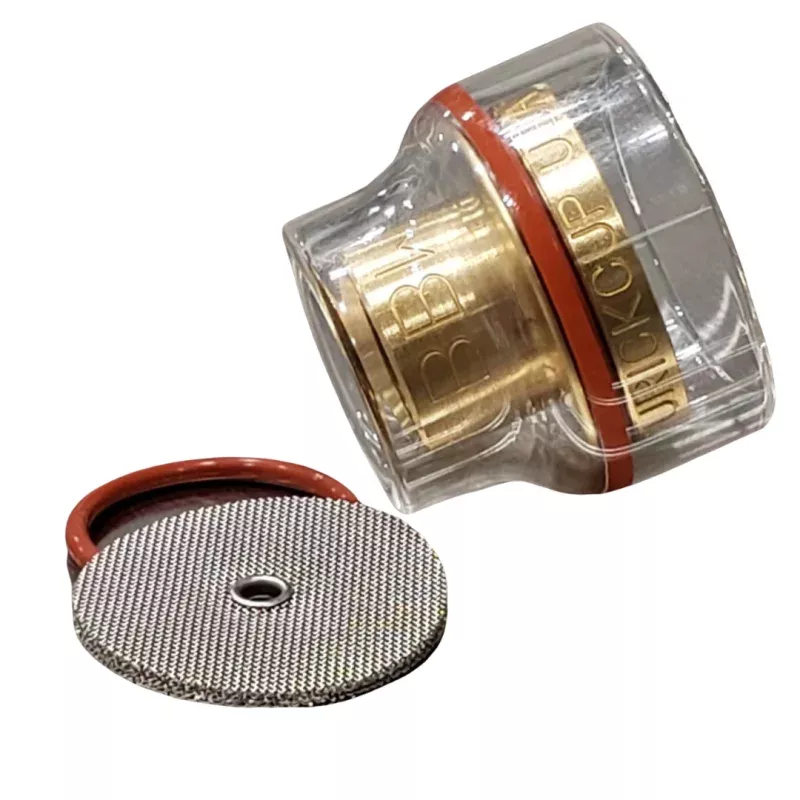

Furick BBW SG-19 16 Glass Cup
The BBWSG-19 is the new and improved design of the original BBW cup. The new design includes a threaded brass chassisthat makes installation easier and improves gas delivery. This model will no longer require o-rings to create a seal at the neck of the cup.
Important Facts
- For 3/32 tungsten
- DC TIG welding only
- Max 180 Amps
- Recommended gas flow 30 – 40 CFH
- No walking the cupglass.
Installation info
- 17, 18 and 26 series torches require – 4GL332 colletbody
- 9 and 20 series torches require – 45V44 (2GL332) collet body
- Donotover tightentheglass.
- Screw the cup onto collet body until you feel minimum tension. The brass will not bottom out out on the torch so do notforce it.
What else?
- 1 spare diffuser disc included.
- Made in the USA.
