Freud Top Bearing Fillet Ogee Groove Bit
Template work, decorative edges and elaborate grooves
39-522 1/8″ Radius Top Bearing Fillet OgeeGroove Bit
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 5/32″
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 3/4″
OVERALL LENGTH (H) 2-3/16″
SHANK DIA. (A) 1/4″
SMALL DIA. (N) 1/4″
CARBIDE HEIGHT (H) 1/2″
RADIUS (R) 1/8″
MAX RPM 24000

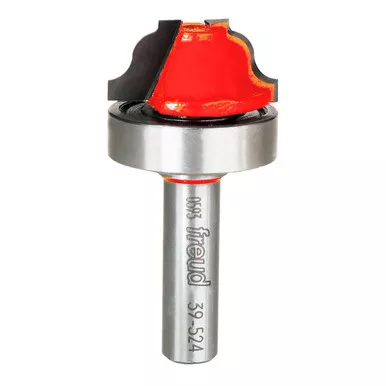

39-524 5/32″ Radius Top Bearing Fillet Ogee Groove Bit with 3/8″ Shank
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 5/32″
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-7/64″
OVERALL LENGTH (H) 2-1/4″
SHANK DIA. (A) 3/8″
SMALL DIA. (N) 15/32″
CARBIDE HEIGHT (H) 9/16″
RADIUS (R) 5/32″
MAX RPM 18000
