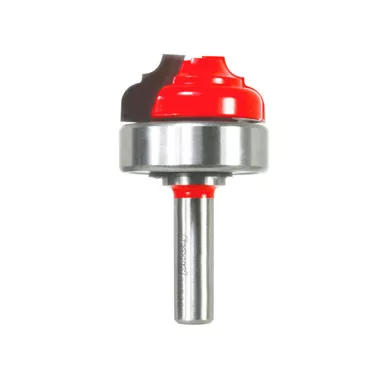

Freud Top Bearing Cove & Bead Groove Bits
Template work, decorative edges and elaborate grooves
PRODUCT OVERVIEW:
These bits work with your pattern or template to create a traditional cove and bead profile that includes a flat bottom, creating the illusion of panel construction. These bits can also be used to create a decorative edge profile. Use with hand-held or table-mounted routers to cut hardwood, softwood, plywood or composites.
Use with templates to create a traditional cove and bead profile, creating the illusion of panel construction
Cuts all composition materials, plywoods, hardwoods, and softwoods
Use on hand-held and table-mounted portable routers
Freud Perma-SHIELD® Coating
39-532 1/8″ Radius Top Bearing Cove & Bead Groove Bit
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 5/64″
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 3/4″
OVERALL LENGTH (H) 2-3/16″
SHANK DIA. (A) 1/4″
SMALL DIA. (N) 1/4″
CARBIDE HEIGHT (H) 31/64″
RADIUS (R) 1/8″
MAX RPM 24000
39-534 5/32″ Radius Top Bearing Cove & Bead Groove Bit
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 5/64″
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-7/64″
OVERALL LENGTH (H) 2-5/16″
SHANK DIA. (A) 3/8″
SMALL DIA. (N) 31/64″
CARBIDE HEIGHT (H) 35/64″
RADIUS (R) 5/32″
MAX RPM 18000
39-536 3/16″ RadiusTop Bearing Cove & Bead Groove Bit
TECHNICAL SPECIFICATIONS
MINOR HEIGHT (M) 5/64″
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-3/8″
OVERALL LENGTH (H) 2-7/16″
SHANK DIA. (A) 3/8″
SMALL DIA. (N) 5/8″
CARBIDE HEIGHT (H) 39/64″
RADIUS (R) 3/16″
MAX RPM 16000
