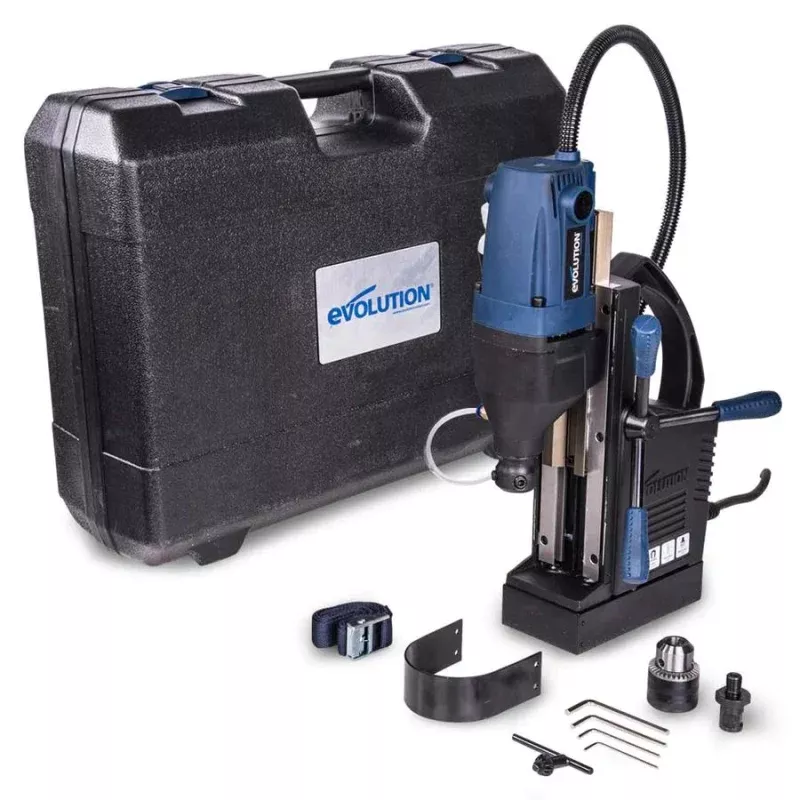

S28MAG, Evolution 1-1/8 in. Dia. Magnetic Drill with Carry Case
Features:
-
A simple-to-use coolant system ensures that the workpiece stays cool while drilling.
-
Textured, Tri-spoke spindle handle gives you ultimate control when lowering the drill.
-
Ultra-smooth dovetail slides offer smooth and precise operation.
-
2 stage magnet allows you to precisely configure the machine so you get a perfect result.
-
Compatible with a range of Evolution premium annular cutters and accessories.
-
Supplied in a robust carry case.
Specifications
Machine:
- Motor (120V 60Hz): 10A
- Speed No Load: 450 rpm
- Number of Speeds: 1
- Insulation Class: 1
- Cable Length: 8 ft., 2 in.
- Magnetic Adhesion: 2860lbs f
Cutter Capacities:
- Maximum Annular Cutting Capacity: 1-1/8 in. / 28 mm
- Maximum Cutting Depth: 2 in.
- Cutter Shank: 3/4 in.
- Standard Twist Drill Capacity: 1/2 in.
- Minimum Plate Thickness: 3/8 in.
Dimensions:
- Magnet Dimension: 1-5/8 x 3-1/2 x 7-1/8 in.
- Maximum Machine Height: 25-5/8 in.
- Minimum Machine Height: 16-1/2 in.
- Machine Width: 7-7/8 in.
- Product Weight: 26 lb
Includes:
- Instruction Manual
- Coolant System
- Safety Guard & Fixings
- Safety Strap
- Feed Handles x3
- Hex Keys – x2
- Chuck with Chuck Key
- Carry Case
