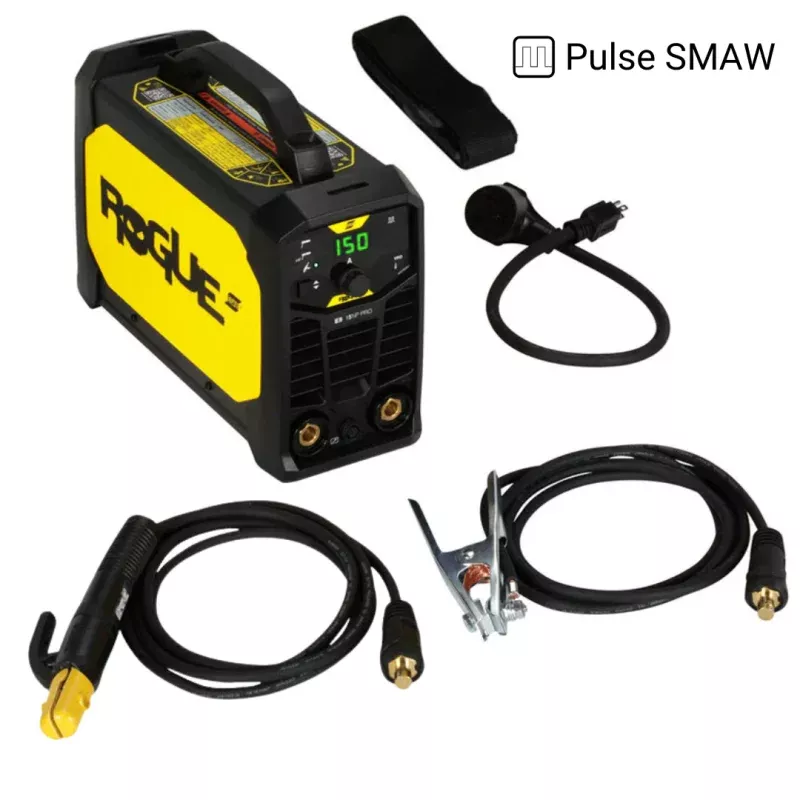

ESAB Rogue ES 151iP PRO Pulsed Stick Welder

ESAB Rogue ES 151iP PRO Pulsed Stick Welder

The Rogue ES is a robust and durable power source for theprofessional welder. The machine provides state-of-the-art weldingperformance and reliability through use of the latest highperformance power electronics and digital control; ensuring a precise
consistent arc.

he Rogue ES provides smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and nonalloyed steel, stainless steel, and cast iron. Featuring Arc Force andHot Start settings for more control over your arc. Digital microprocessor offers more control over all arc parameters and providesbest-in-class welding performance. TheRogue ES 151iP PRO welds3.2 mm (1/8 in.) electrodes.

New Pulse SMAW functionality enhances Rogue’s performance andimproves the heat input control, to minimize thin gauge materialsdistortion , facilitate out-of-position welding with no undercuts andreducing spatter, thus helping to effectively avoid a number ofwelding defects.Rogue ES can TIG weld mild-steel or stainless steel via “LIVE TIG”functionality (TIG torch sold separately) for even more versatility

Specification Rogue ES 151iP Input Power 120230 VAC15%, 50/60 Hz Maximum Output Power 150 A Rated kVA 3.9 kVA Energy Save Mode 50 W Open Circuit Voltage 78 V DC Stick Welding Output (230V) 150 A @ 25% Duty Cycle, 84 A @ 60%, 65 A @ 100% Stick Welding Output (120V) 90 A @ 25% Duty Cycle, 58 A @ 60%, 45 A @ 100% TIG Welding Output (230V) 150 A @ 25% Duty Cycle, 84 A @ 60%, 65 A @ 100% TIG Welding Output (120V) 130 A @ 25% Duty Cycle, 84 A @ 60%, 65 A @ 100% Current Range 10-150 A (230V), 10-130 A (120V) Pulse SMAW Frequency 0.2 – 100 Hz High Frequency No AC TIG (Aluminum) No Foot Pedal Compatible Yes – ESAB Pedal // SSC Pedal Operating Temperature -10 to +40 C (+14 to +104 F) Enclosure Class IP23S Dimensions 403 x 153 x 264 mm (15.8 x 6 x 10.4 in.) Weight 8.25 kg (18.2 lbs) Special Features

Dual voltage input, Pulse SMAW functionality, superior arc characteristics, generator compliant, portability, robust design, PFC for stable arc.

Spec SheetAccessories
