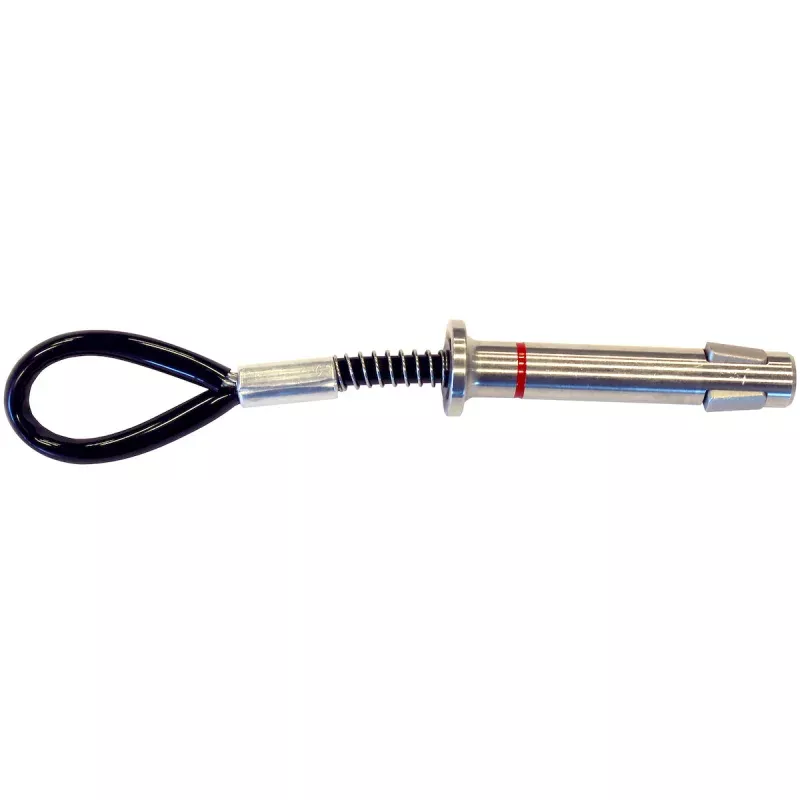

Dynamic Temporary Anchorage Connectors
This item replaces the discontinued Miller Grip 496
Portable/Reusable Anchorage Connection
Temporary and removable Fall Protection concrete anchor. 3/4″ diameter rated for 22kN (5000 lbs).
Download User Manual
A safe anchor point is established when the anchor is inserted into a properly-sized, cured concrete hole. Designed for use in cured concrete with a compression strength of at least 3,000 psi (20.7 MPa) , it can be used for vertical or overhead/ceiling surface applications. The Dynamic Temporary anchor can be removed and simply re-installed in a new location. The FP373175Y Removable Concrete Anchor should be installed into a pre-drilled hole made within a minimum of 3,000 PSI fully cured concrete. Additional installationspecifications regarding concrete thickness and edge distance are also described within themanualfor more information, refer to Section 8.5. The structure to which the FP373175YRemovable Concrete Anchor is attached must be capable of supporting loads as detailed inSection 4. This anchor may be installed overhead, vertically, or horizontally. If the anchor isinstalled below the FBH dorsal D-ring, a PFAS designed for extended free fall scenarios mustalso be used. When properly installed, the anchors may be used as part of a PFAS, restraint orwork positioning system.
