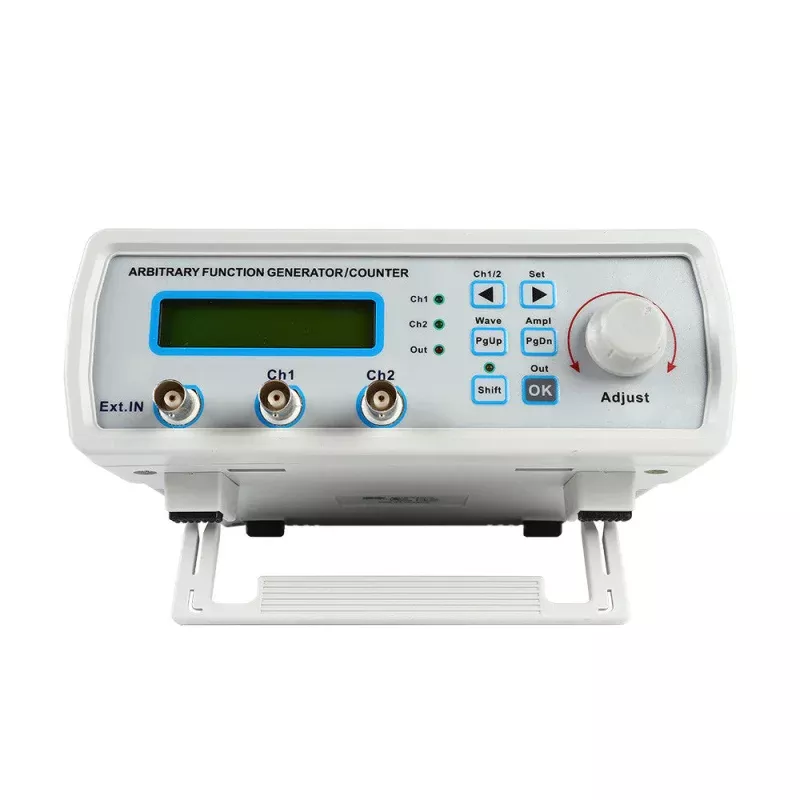

[Discontinued] MHS-5200A 6MHz 200MSa/s Arbitrary Waveform Digital Signal Source Generator

SPECIFICATION

Project

Parameters

Key Features

Frequency Range

Sine Wave

Normal Modes(Optional): 0.01Hz~6MHz

Square Wave

0.01Hz~6MHz

Triangle Wave

0.01Hz~6MHz

Sawtooth Wave

0.01Hz~6MHz

Arbitrary Waveform

0.01Hz~6MHz

TTL Digital Signal Wave

0.01Hz~6MHz

Output Modulation

Frequency Sweep

Waveform Types

Sine/Triangle/Square/Lifting Sawtooth Wave, CMOS Digital Signal Wave and Arbitrary Waveform

Waveform Length

2048Points

Sampling Rate

200MSa/s

Waveform Amplitude Resolution

12 Bits

The Min. Frequency Resolution

10mHz

Frequency Error

+/-5*10^(-6)

Frequency Stability

+/-1*10^(-6)

Amplitude Range(Peak to Peak)

5mVp-p~20Vp-p

Output Impedance

50(+/-10%)

Amplitude Resolution

1mVp-p (-20dB Attenuation)

10mVp-p (No Attenuation)

Offset Range

-120%~120% (The ratio of bias voltage and signal amplitude)

Bias Resolution

1%

Phase Range

0~359

Phase Resolution

1

Sine Wave

Harmonic Arrived System

40dBc(<1MHz); 35dBc(1MHz~20MHz)

Distortion

<0.8%(20Hz~20KHz)

Square Wave

Lifting Along Time

?0ns

Overshoot

?0%

Duty Cycle Adjustment Range

0%~99.9%

TTL

Lifting Along Time

?0ns

Low Level

<0.3V

High Level

1V~7.5V

Arbitrary Waveform

Quantity

16

Memory Depth/Group

1KB/16

Scan

Scan Mode

Linear Sweep, Log Sweep

Scan Time

1s-999s

Scan Range

It is determined by the sweep parameter settings

External Measurements

Frequency Measuring Range

GATE-TIME=10S 0.1Hz – 60MHz

GATE-TIME=1S 1Hz – 60MHz

GATE-TIME=0.1S 10Hz – 60MHz

GATE-TIME=0.01S 100Hz – 60MHz

Input Voltage Range

0.5Vp-p~20Vp-p

Counting Range

0~4294967295

Counting

Manually

Positive and Negative Pulse Width Measurement

10ns Resolution, the Max. Measurable 10s

Periodic Measurement

20ns Resolution, the Max. Measurable 20s

Duty Cycle Measurement

0.1% Resolution, Measuring Range from 0.1%~99.9%

Source Selection

1. Ext. IN Input(AC Signal) ; 2. TTL-IN Input(Digital Signal)

Memory

Quantity

10

Location

M0~M9

Interface

Interface Mode

using USB to Serial Interface

Communication Rate

57600bps

Protocol

Using the Command Line, the Agreement Public

Power Supply

DC

MHS5200A DC 5V Power Supply

General

Size

19.5 * 17.5 * 7cm / 7.67 * 6.9 * 2.75in

Weight

542g / 19.12oz

Package Size

24 * 24 * 12cm / 9.55 * 9.45 * 4.72in (L * W * H)

Package Weight

1027g / 36.25oz

WHAT’S IN THE PACKAGE

1 xSignal Source Generator
1 xUSB Cable
1 x CD
1 xTTL Expansion Board
2 xBNC Clips Cable
