Spec Sheet

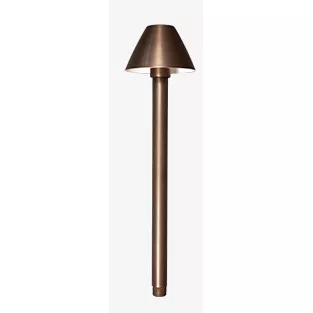

The wildlife-safe Atlantis path light features a 4-inch-diameter spun brass hat. Its underside is a powder-coated reflective white surface. Frosted acrylic lens ensures water and bug resistant operation. Turtle-safe and wildlife-approved when used with Dauer WL amber or WL red lamps.
Specifications:
- Housing: Spun Brass
- Finish: Weathered brass. Custom powder coated colors available.
- Lens: Frosted acrylic
- Socket/Lamp Holder: One fixed ceramic bi-pin socket in stem accepts bi-pin lamps with G4 or GY6.35 bases.
- Lamp Type: 12V encapsulated LED bi-pin. Halogen 35W maximum or 6W LED maximum.
- Mounting: 1/2″ NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories
- Wiring: Pre-wired with 5′ pigtail of 18/2 cable.
- Warranty: Lifetime
Dimensions:
- Overall Height: 15″
- Width: 4″
- Hat Height: 3″
Specs
Housing:Spun Brass
Finish:Weathered brass. Custom powder coated colors available.
Lens:Frosted acrylic
Socket/Lamp Holder:One fixed ceramic bi-pin socket in stem accepts bi-pin lamps with G4 or GY6.35 bases.
Lamp Type:12V encapsulated LED bi-pin. Halogen 35W maximum or 6W LED maximum.
Mounting:1/2″ NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories
Wiring:Pre-wired with 5′ pigtail of 18/2 cable.
Warranty:Lifetime
