Spec Sheet

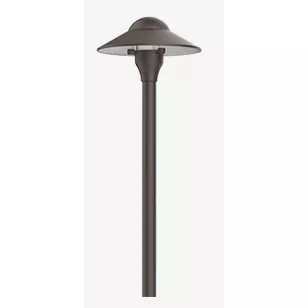

The Carmel path light features a 6.26-inch-diameter cast aluminum hat. Its underside is a powder-coated reflective white surface. 3W Integrated LED with a 2700K or 3000K color temperature. Ten-year warranty.
Specifications:
- Housing: Cast aluminum
- Finish: Architectural bronze
- Lens: Polycarbonate
- Mounting: 1/2” NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories.
- Wiring: Pre-wired with 5′ pigtail of 18/2 cable.
- Warranty: Ten years
- Integrated LED Lamp:
- Wattage: 3W
- Voltage: 12V
- Lumens: 300
- Volt Amps: 3.10VA
- Kelvin Temperature: 3000K
Dimensions:
- Overall Height: 21.46″
- Width: 6.26″
Specs
Housing:Cast aluminum
Finish:Architectural bronze
Lens:Polycarbonate
Mounting:1/2” NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories.
Wiring:Pre-wired with 5′ pigtail of 18/2 cable.
Warranty:Ten years
Integrated LED Lamp:
Wattage:3W
Voltage:12V
Lumens:300
Volt Amps:3.10VA
Kelvin Temperature:3000K
