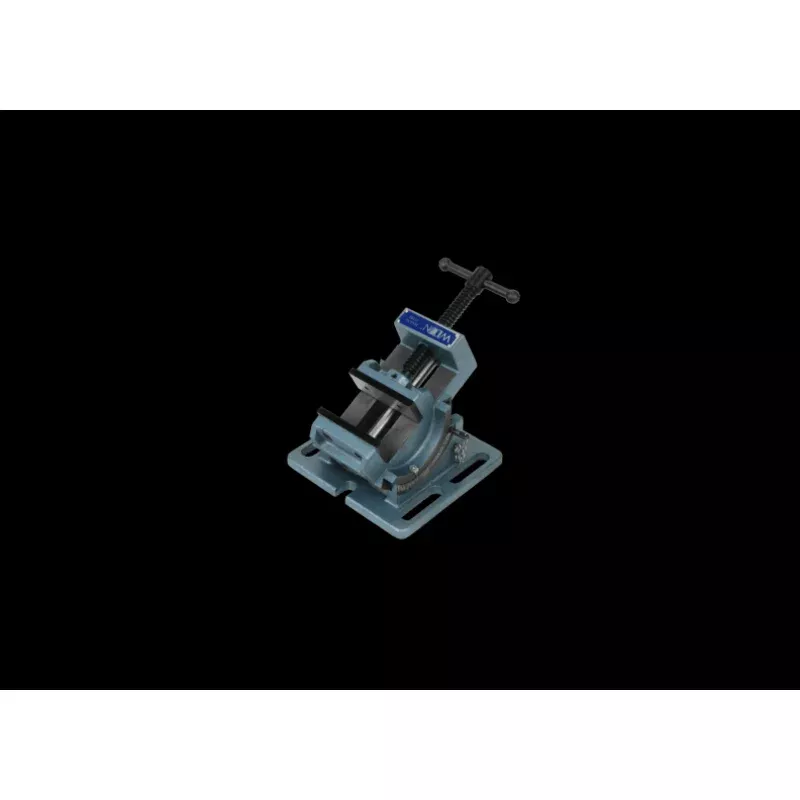

Cradle Style Angle Drill Press Vise

Details

The cradle style drill press vise is designed for angled drilling and tapping applications. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton’s lifetime warranty.

Features

• Base has fourshoulder slots for quick, easy positioning on the machine table
• Cradle design with 90 vertical indexing, scaled in 1 increments
• Designed for applications including drilling, tapping, and reaming
• Designed for applications including drilling, tapping, and reaming requiring angle setup
• Durable construction with fine grain cast iron castings
• Durable construction with fine grain cast iron castings and hardened smooth vise jaws
• Highly accurate with beds and bases parallel to .001
• Pin hard stops at 0, 15, 30, 45, 60, 75 and 90 for common applications
• Side tommy bar allows secure locking at any increment from 0 – 90

Specifications

3 INCH
Stock Number 11753 Jaw Depth (In.) 1-1/8 Jaw Width (In.) 3 Opening Capacity Max (In.) 3 Prop 65 Cancer and Reproductive Harm Weight (Lbs.)

12

Manual

PDF

4INCH Stock Number 11754 Jaw Depth (In.) 1-1/2 Jaw Width (In.) 4 Opening Capacity Max (In.) 4 Prop 65 Cancer and Reproductive Harm Weight (Lbs.)

17

Manual

PDF
