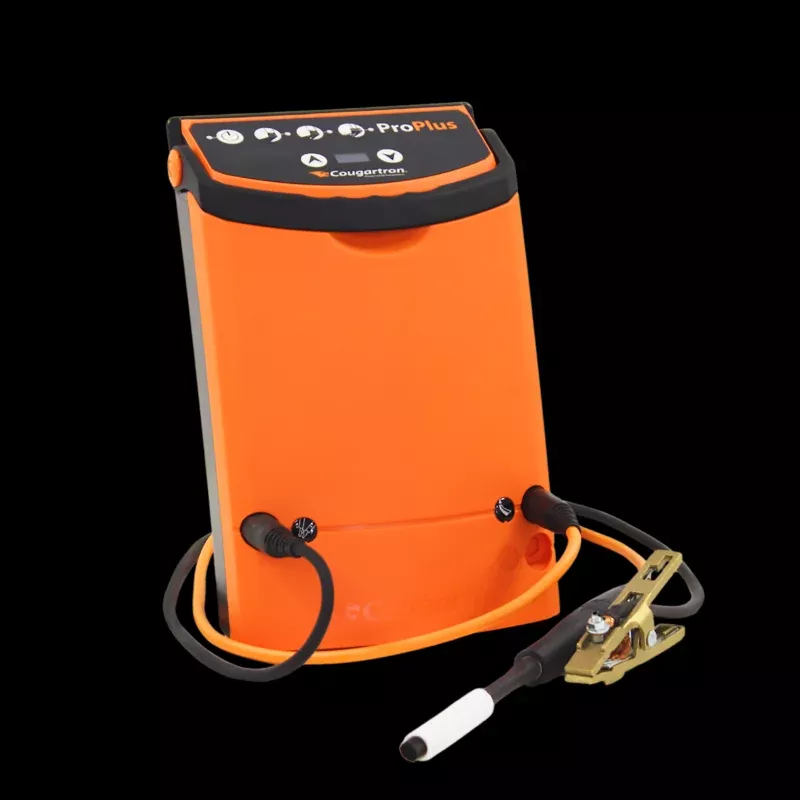

Cougartron ProPlus Weld Cleaning System 110V

Cougartron ProPlus Weld Cleaning System

The bridge between precision and power.

ProPlus is a portable weld cleaner for stainless shops that clean welds regularly and need a stronger, more capable machine.

Use it for TIG and MIG stainless welds, weld cleaning, passivation, electropolishing, and marking or etching with the correct marking set. It gives you a 550A cleaning range in 5A increments, 100% duty cycle, and the option to use one or two brush holders depending on the work.

Starter Set A

Machine unit with consumables for weld cleaning and polishing.

Features

• Portable Cougartron weld cleaner for regular stainless work
• Suitable for TIG and MIG stainless welds
• 550A weld-cleaning range in 5A increments
• 550A polishing range in 5A increments
• Marking and etching mode with optional marking set
• Weld cleaning, passivation, polishing, marking, and etching
• 100% duty cycle
• One or two-brush holder options
• Fluid-feed compatible
• Touch-control user interface and power readout
• Suitable for workshop and on-site use
• Can be used up to 52 ft from the power source with compatible extension leads
• IP51 enclosure protection
• CE, UL, and CSA certified

Technical Specifications

Product type

Portable weld cleaner for regular stainless work

Power supply

110 V AC, 50/60 Hz, 8A

Weld-cleaning amp range

550A, 5A increments

Weld-cleaning voltage range 14 V AC Polishing amp range

550A, 5A increments

Polishing voltage range 14 V DC Marking amp range

210A, 2A increments

Marking voltage 14 V AC Duty cycle 100% Detachable handle No Input cable length 6 ft Output cable length 12 ft Output cable size 8 AWG Brush holder options 1, 2 Fluid-feed compatible Yes Machine size

W 15, H 9, D 7

Enclosure protection IP51 Certification CE, UL, CSA

Package Includes – Starter A

• ProPlus weld-cleaner (machine only)
• Lead with handle 4M, 50A (x-connector) (WELC2047)
• Lead with earth clamp 4M, 50A (x-connector) (WELC2118)
• Wand/twist shroud set for 1x M6 brush (WELC2226)
• Acid pot 500ml with lid (WELC2005)
• Microfiber cloth 40x40cm, orange (WELC2149)
• Cougartron USB storage device (WELC2150)
• Country-specific power lead
• Transport case – Large (WELC2064)
• Foam insert for large transport case (WELC5006)
• 5x Super brush M6, 50A (WELC3145)
• 1L CGT-550 Weld Cleaning & Polishing Fluid (WELC3081)
• 500ml CGT-N5 HyPerformance Neutralising Fluid (WELC3165)
• Sprayer for spray bottle, orange (WELC2092)
• 1 pair Cougartron acid resistant gloves (WELC2867)
• Cougartron safety glasses (WELC2868)
