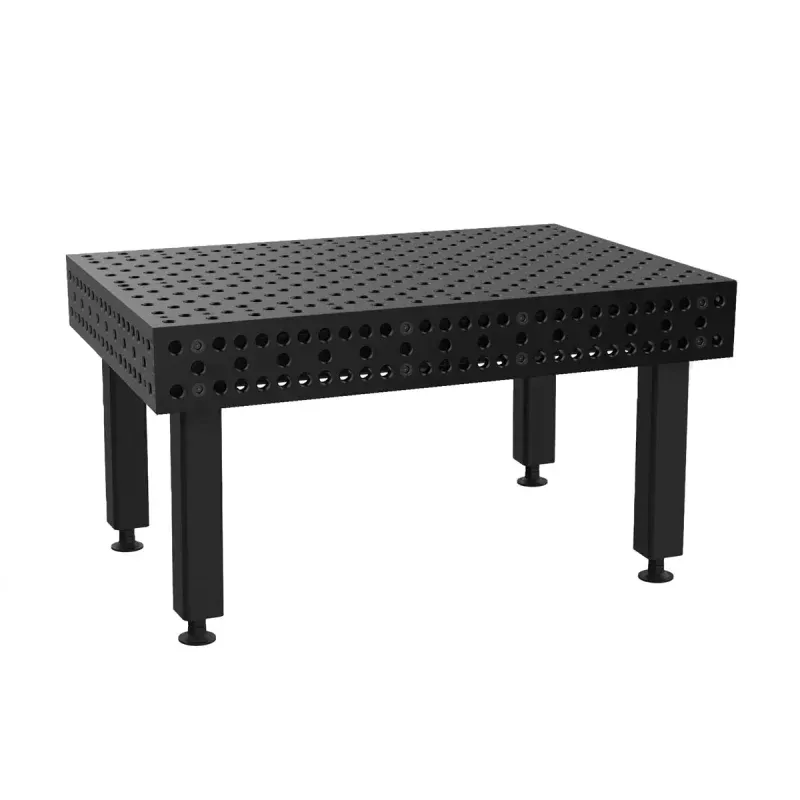

BuildPro Alpha 28 Welding Fixture Table, 1.5m x 1.0m

BuildPro Alpha28 Welding Fixture Table

1.5m x 1.0m (Approx. 5′ x 3.25′)Nitrided -28mm Bore Diameter Fixturing Holes

This product ships free of charge to USA (lower 48) and Canada. No import fees or duties are applied. Forklift or Loading Dock are required.

Each plate of the table is made from a low alloy tool steel thats tough enough for use in the mold-making industry. After surface grinding and machining, each plate is further enhanced with a QPQ nitriding process that improves hardness, corrosion resistance, and resistance to weld spatter.

Plates on the table can be repositioned, or removed as applications dictate; a patented plate locating system means the spacing of the holes are always within tolerance without the need for special re-calibration.

Specifications

• Size:1.5m x 1.0m

• Flatness:+/- .004 inches per foot

• Finish:Plasma Nitride

• Hole diameter:28mm

• Hole spacing:100mm

• Plate thickness:1 inch +/- .002 (25mm)

• Weight (pounds):1500

• Dimensions (LxWxH):59 x 39.37 x 7.87 inches

BuildPro Alpha 28 Brochure | View All BuildPro Tables and Accessories

Table Accuracy

Hole Diameter 28 + .20 /-0 mm Hole Spacing 100 0.05 mm Table Flatness 0.125 mm per 600 x 600 mm
Plate Thickness 25 0.06 mm Tabletop Finish Nitrided (Heat Treated) Surface Hardness 58-62 HRC Coefficient of Friction 0.37

Top Plate

Material P20 Hardness 58-62 HRC

Side Plate

Material Q345B Hardness 50-55 HRC

Please allow a 5 business day processing time. Orders are shipped direct from the manufacturer and do not incurimport fees.
