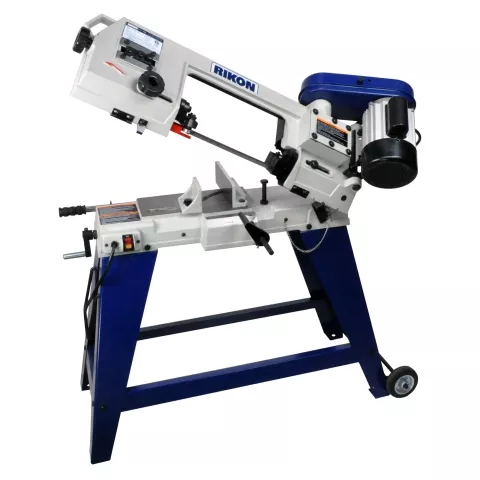

- Floor standing band saw, 4×6, Model 15-400 – Rikon
- Horizontal position for precise cutting and automatic shutoff
- Vertical position for freehand cutting
- 3 blade speeds:80, 120, and 180 feet per minute
- 4″ x 6″ rectangular capacity or 4-1/2″ round stock capacity
This 4″ x 6″ capacity horizontal / vertical band saw has automatic shutoff at the end of the cut when in the horizontal position. The saw is floor standing on the included stand.
The vertical position allows for freehand cutting of large, thin work pieces.
In the horizontal position the vise can be set from 0 to 45 degrees for angle cuts. The saw has adjustable down pressure and automatic shutoff for unattended operation. There is a work stop for repetitive cuts at the same dimension.
The saw comes equipped with a 14 TPI blade.
This is Rikon model 15-400
| Cutting Capacity, Rectangular | 4″ x 6″ (102 mm x 152 mm) |
| Cutting Capacity, Round | 4″ (114 mm) |
| Blade Size | 64-1/2″ x 1/2″ x 0.025″ |
| Angle Cuts, Horizontal Position | 0°-45° |
| Motor | 0.74 hp (550 Watts) |
| Blade Speeds | 88 130 210 FPM |
| Power Requirements | 120 V 60 Hz 6 Amps |
| Machine Weight | 128 lbs (58 kg) |
| Base Dimensions (W x D) | 34.0″ x 14.0″ (864 mm x 356 mm) |
| Overall Dimensions, Horizontal Position (W x D x H) | 37.8″ x 19.7″ x 37.8″ (960 mm x 500 mm x 960 mm) |
| Overall Dimensions, Vertical Position (W x D x H) | 37.8″ x 19.7″ x 55.1″ (960 mm x 500 mm x 1400 mm) |
| Crated Weight | 134 lbs (61 kg) |
| Crate Dimensions (W x D x H) | 39.6″ x 15.0″ x 15.2″ (1007 mm x 382 mm x 385 mm) |
