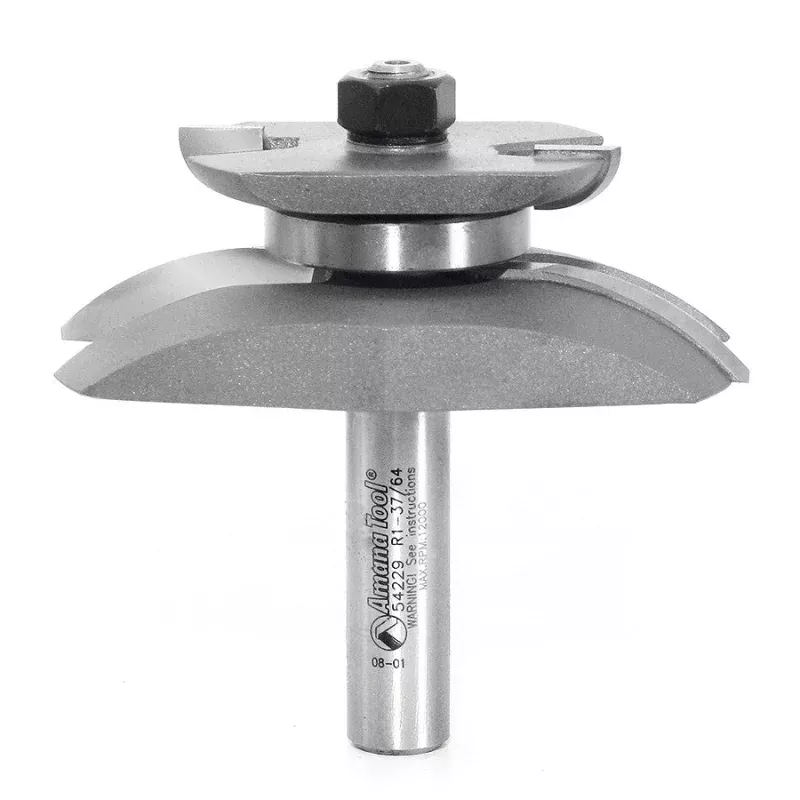

54229, Amana Carbide Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank
Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8.” As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended. Maximum RPM 12,000.
Specifications:
- Tool No. 54229
- Diameter (D) 3-3/8
- Cut Depth (A) 1-3/8
- Radius (R) 1-9/16
- Cutting Height (B) 1-1/16
- Shank (d) 1/2
- Overall Length (L) 2-15/16
- A1 1-1/16
- B1 1/2
- Replacement Bearing 47713,47763
- R1 5/16
- Flutes 2
- D1 2-1/8
