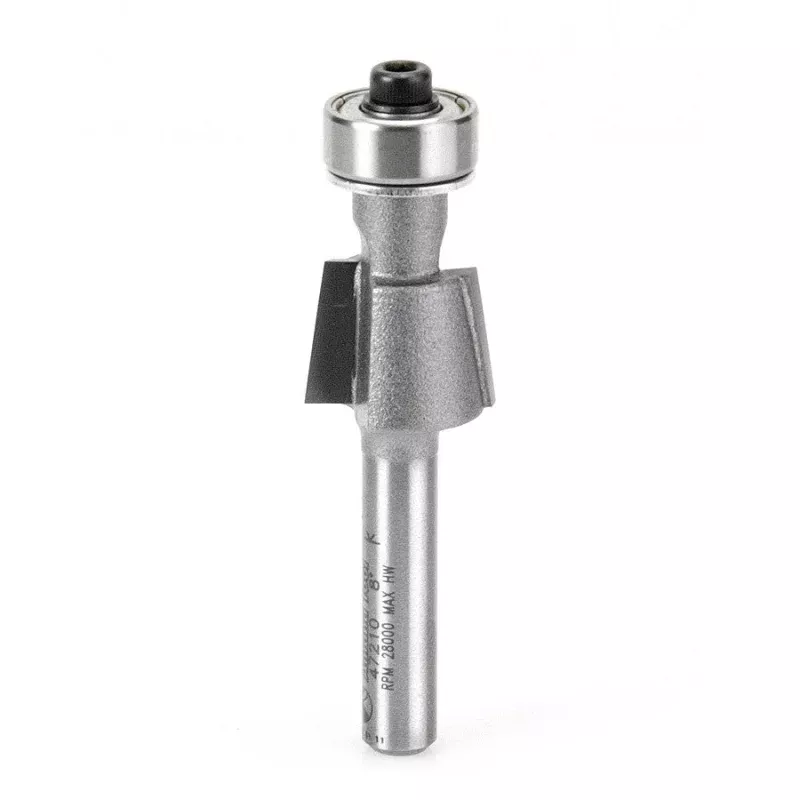

47210, Amana Carbide Tipped Special Bevel Trim 8 Deg x 5/8 Dia x 1/4 x 1/4 Inch Shank
A very shallow bevel angle and the gap between the cutting edges and the ball-bearing pilot are the key features of this carbide-tipped bit. The gap collects adhesive residue that usually fouls the pilot and thus degrade the cut. Tool is a special 8 bevel tool with a gap (.287″) to reduce glue build-up.
Specifications:
- Tool No. 47210
- Diameter (D) 5/8
- Angle (a) 8
- Cutting Height (B) 15/32
- Shank (d) 1/4
- Overall Length (L) 2-1/4
- Replacement Bearing 47706
- Flutes 2
