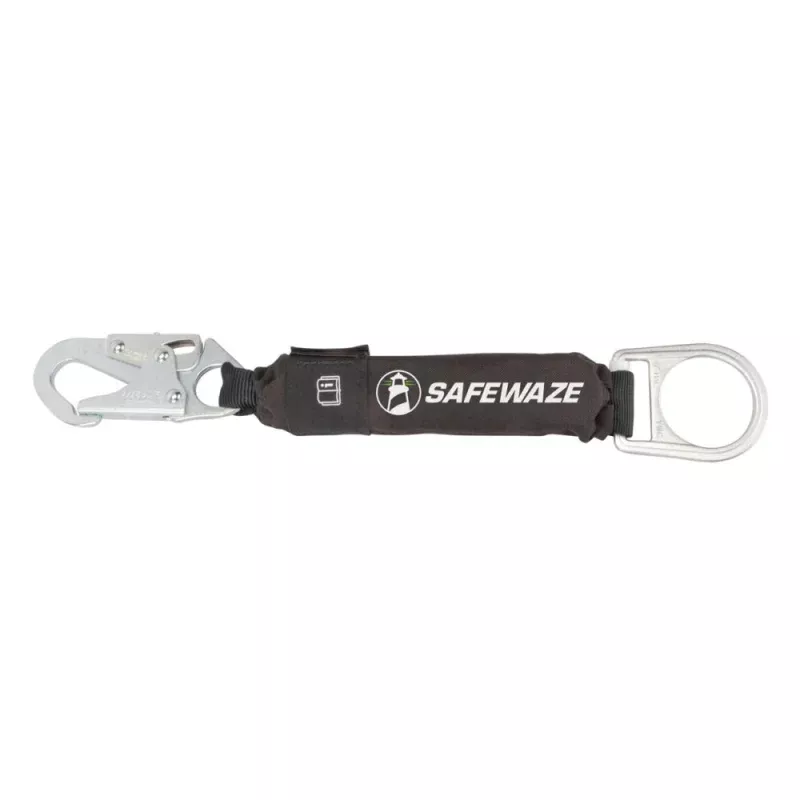

18 Energy Absorber: Snap Hook, D-ring

D-ring Extenders

The 18 Energy Absorber extends the harness dorsal D-ring. Attach the snap hook to harness D-ring and connect the extended D-ring to the fall protection product not already equipped with an energy absorbing component. Important to consider the energy absorber in your free fall and fall clearance calculations.

Features:

• 18″ fixed length
• 1 forged D-ring
• 1 forged steel snap hook
• Protective label cover
• Durable shock cover

Specifications:

Attachment Points: 1 D-ring, 1 snap hook Weight: 1.7 lbs. (0.8 kg) Length: 18″ (.5 m) Breaking Strength: 5,000 lbs. minimum ANSI Weight Capacity: 130-310 lbs. (59-141 kg) OSHA Weight Capacity: Up to 420 lbs. (191 kg) ANSI Standards: Z359.3-2013 OSHA Standards: 1926.502, 1910.140, 1910.66
